General part information
RF Inductors - SMD CERAMIC RF CHIP 1nH Tol0.3nH TIN
Technical documentation and resources
Parameters and characteristics for this part
| Specification | 1836793 |
|---|---|
| Color | Black |
| Contact Material | Copper Alloy |
| Contact Mating Finish | Tin |
| Contact Tail Length | 0.079 in |
| Contact Tail Length | 2 mm |
| Current - IEC | 12 A |
| Current - UL | 16 A |
| Features | Mating and Mounting Flange |
| Header Orientation | 90°, Right Angle |
| Housing Material | Liquid Crystal Polymer (LCP) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Levels | 1 |
| Number of Positions | 13 |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 5 mm |
| Pitch [x] | 0.197 in |
| Positions Per Level | 13 |
| Termination Style | Solder |
| Type | Header, Male Pins, Shrouded (4 Side) |
| Voltage - IEC | 320 V |
| Voltage - UL | 300 V |
RF Inductors - SMD CERAMIC RF CHIP 1nH Tol0.3nH TIN
| Part | Header Orientation | Voltage - UL | Contact Tail Length | Contact Tail Length | Contact Material | Number of Positions | Termination Style | Operating Temperature [Max] | Operating Temperature [Min] | Material Flammability Rating | Contact Mating Finish | Number of Levels | Voltage - IEC | Type | Current - UL | Housing Material | Positions Per Level | Mounting Type | Features | Current - IEC | Color | Pitch [x] | Pitch [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

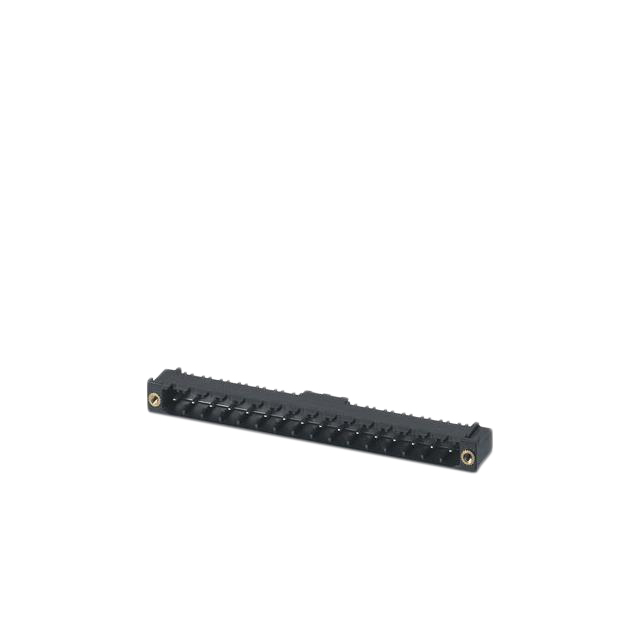

Phoenix Contact 1836793 | 90°, Right Angle | 300 V | 0.079 in | 2 mm | Copper Alloy | 13 | Solder | 100 °C | -40 °C | UL94 V-0 | Tin | 1 | 320 V | Header, Male Pins, Shrouded (4 Side) | 16 A | Liquid Crystal Polymer (LCP) | 13 | Through Hole | Mating and Mounting Flange | 12 A | Black | 5 mm | 0.197 in |
