Description
General part information
6XV18301ET10

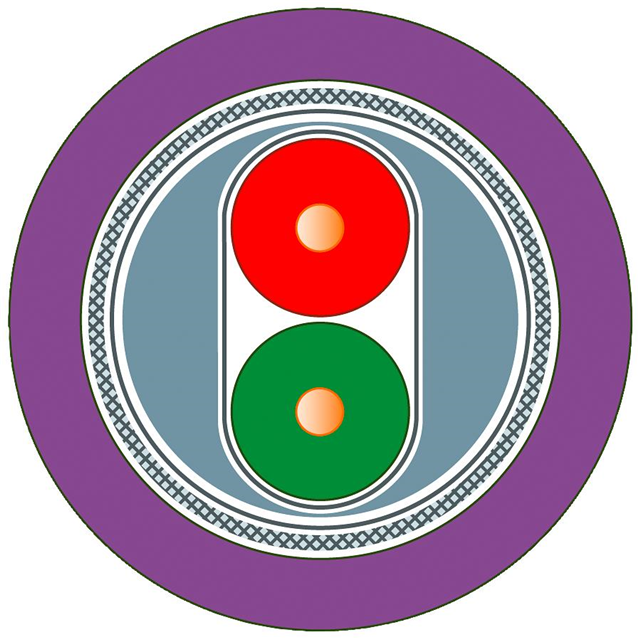

2 Conductor Multi-Conductor Cable Violet Foil, Braid 328.1' (100.0m)
Technical Specifications
Parameters and characteristics for this part
| Specification | 6XV18301ET10 |
|---|---|
| Cable Type | Conductor, Multi |
| Conductor Insulation | Polyethylene (PE) |
| Jacket (Insulation) Diameter | 0.315 in |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket Color | Violet |
| Length | 328.1 ft |
| Number of Conductors | 2 |
| Operating Temperature (Max) | 75 °C |
| Operating Temperature (Min) | -40 °C |
| Shield Material | Aluminum, Tinned, Copper |
| Shield Type | Braid, Foil |
| Voltage | 80 V |
