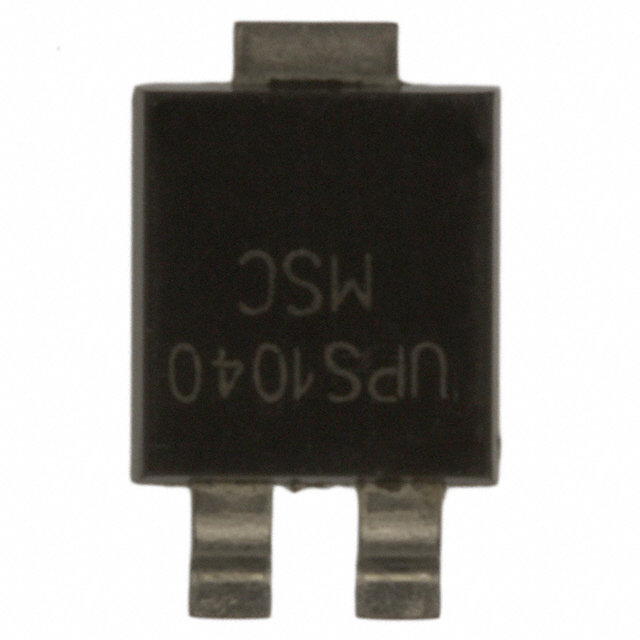

UPS1040E3/TR13
ActiveMicrochip Technology
SCHOTTKY BARRIER RECTIFIER 3-PIN(2+TAB) 10.0A, 40V, VF=0.47V POWERMITE3 T/R
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | UPS1040E3/TR13 | UPS1040 Series |
|---|---|---|
| - | - | |
| Capacitance @ Vr, F | 700 pF | 700 pF |
| Current - Average Rectified (Io) | 10 A | 10 A |
| Current - Reverse Leakage @ Vr | 300 µA | 300 µA |
| Mounting Type | Surface Mount | Surface Mount |
| Operating Temperature - Junction [Max] | 150 °C | 150 °C |
| Operating Temperature - Junction [Min] | -55 °C | -55 °C |
| Package / Case | Powermite®3 | Powermite®3, DO-216AA |
| Speed | 200 mA, 500 ns | 200 - 500 mA |
| Supplier Device Package | Powermite 3 | Powermite 3, Powermite |
| Technology | Schottky | Schottky |
| Voltage - DC Reverse (Vr) (Max) [Max] | 40 V | 40 V |
| Voltage - Forward (Vf) (Max) @ If | - | 490 mV |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.88 | |
| Tape & Reel (TR) | 5000 | $ 0.81 | ||
| Microchip Direct | N/A | 1 | $ 0.88 | |
| 100 | $ 0.81 | |||
| 500 | $ 0.78 | |||
| 1000 | $ 0.74 | |||
| Newark | Each | 500 | $ 0.78 | |
| 500 | $ 0.78 | |||
UPS1040 Series
Schottky Barrier Rectifier 3-Pin(2+Tab) 10.0A, 40V, VF=0.47V PowerMite3 T/R
| Part | Speed | Operating Temperature - Junction [Max] | Operating Temperature - Junction [Min] | Mounting Type | Voltage - DC Reverse (Vr) (Max) [Max] | Supplier Device Package | Technology | Current - Average Rectified (Io) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Package / Case | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
Microchip Technology UPS1040E3/TR13 | 200 mA, 500 ns | 150 °C | -55 °C | Surface Mount | 40 V | Powermite 3 | Schottky | 10 A | 300 µA | 700 pF | Powermite®3 | |
Microchip Technology UPS1040E3/TR13 | ||||||||||||
Microchip Technology UPS1040/TR13 | 200 mA, 500 ns | 150 °C | -55 °C | Surface Mount | 40 V | Powermite | Schottky | 10 A | 300 µA | 700 pF | DO-216AA | 490 mV |
Description
General part information
UPS1040 Series
High power surface mount package. Guard ring die construction for transient protection
