Description
General part information

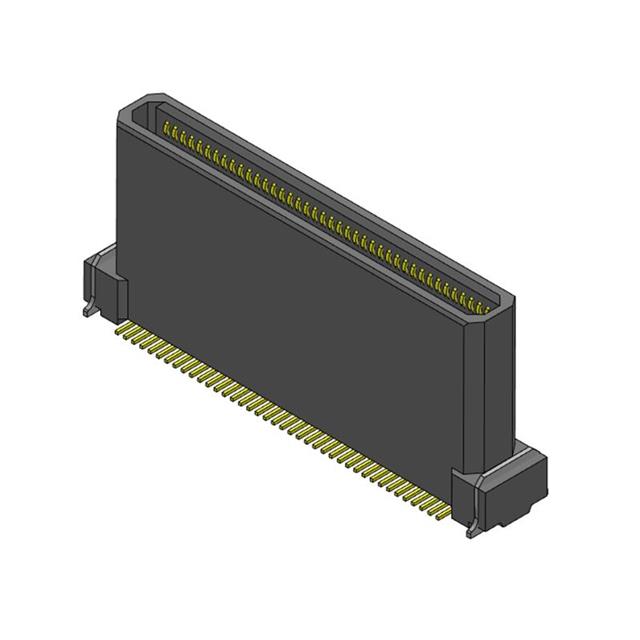

CGZC203-4002B001C1AH
80 Position Connector Plug, Floating Surface Mount Gold
Technical Specifications
Parameters and characteristics for this part
| Specification | CGZC203-4002B001C1AH |
|---|---|
| Connector Type | Floating, Plug |
| Contact Finish | Gold |
| Contact Finish Thickness | 0 |
| Contact Finish Thickness | Flash |
| Contact Finish Thickness (string set options) | Flash |
| Features | Solder Retention, Pick and Place, Board Guide |
| Height Above Board | 0.517 in |
| Mated Stacking Height | 15 mm |
| Mounting Type | Surface Mount |
| Number of Positions | 80 |
| Number of Rows | 2 |
| Pitch | 0.025 in |
