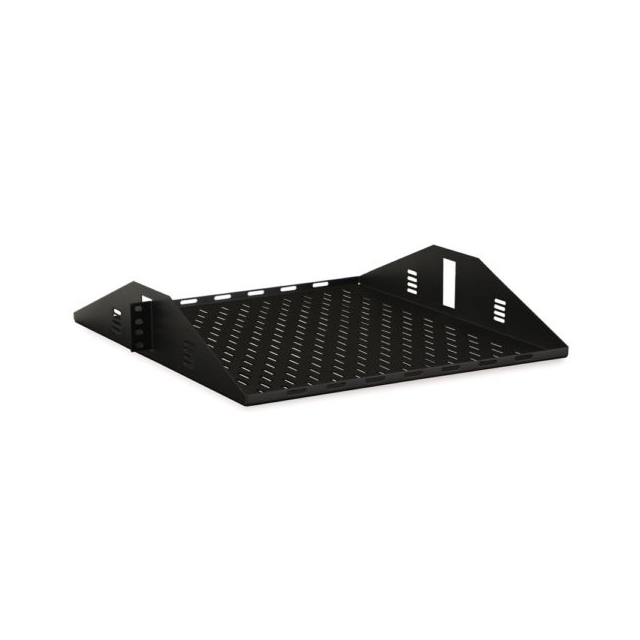

1907-3-000-02

Active

Kendall Howard

2U CENTER MOUNT SHELF (VENTED)

Search across all available documentation for this part.

Active

Kendall Howard

2U CENTER MOUNT SHELF (VENTED)

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1907-3-000-02	1907-3 Series

Color	Black	Black
For Use With/Related Products	19" Panel Width Racks	19" Panel Width Racks
Material	Cold Roll Steel (CRS)	Cold Roll Steel (CRS)
Size / Dimension	-	132.08 mm
Size / Dimension	-	609.6 mm
Size / Dimension [x]	482.6 mm	482.6 mm
Size / Dimension [x]	19 "	19 "
Size / Dimension [y]	482.6 mm	482.6 mm
Size / Dimension [y]	19 in	19 - 24 in
Size / Dimension [z]	88.9 mm	88.9 mm
Size / Dimension [z]	3.5 "	3.5 - 5.22 "
Type	Shelf, Fixed	Shelf, Fixed
Ventilation	Non-Vented	Non-Vented, Vented
Weight	3.6 kg	3.6 - 7.1 kg
Weight	8 lbs	8 - 15.6 lbs

2U CENTER MOUNT SHELF (VENTED)

Part	Type	For Use With/Related Products	Color	Ventilation	Material	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Weight	Weight	Size / Dimension [z]	Size / Dimension [y]
Kendall Howard 1907-3-000-02	Shelf, Fixed	19" Panel Width Racks	Black	Non-Vented	Cold Roll Steel (CRS)	482.6 mm	482.6 mm	88.9 mm	19 "	3.5 "	19 in	3.6 kg	8 lbs
Kendall Howard 1907-3-001-03	Shelf, Fixed	19" Panel Width Racks	Black	Non-Vented	Cold Roll Steel (CRS)		482.6 mm		19 "	5.22 in	24 "	7.1 kg	15.6 lbs	132.08 mm	609.6 mm
Kendall Howard 1907-3-000-03	Shelf, Fixed	19" Panel Width Racks	Black	Vented	Cold Roll Steel (CRS)		482.6 mm		19 "	5.22 in	24 "	6.4 kg	14 lb	132.08 mm	609.6 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cold Roll Steel (CRS) Shelf, Fixed 19.000" L x 19.000" W x 3.500" H (482.60mm x 482.60mm x 88.90mm) Black
