72400-B

Obsolete

O.C. White Co.

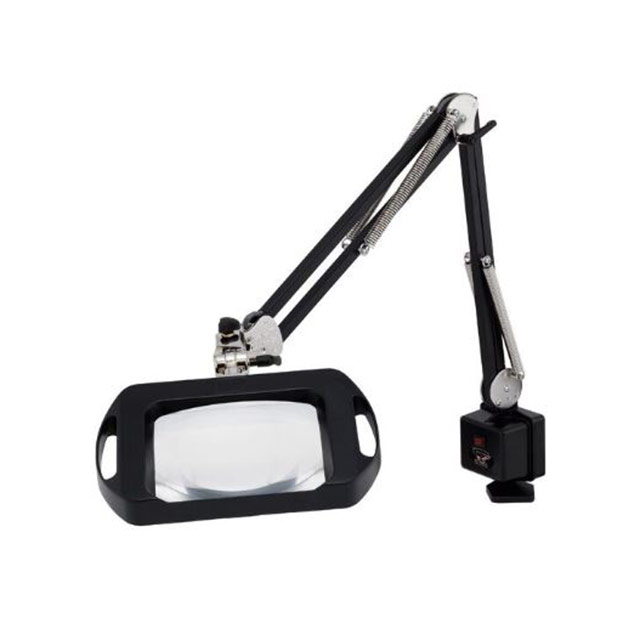

LAMP MAGNIFIER 3 DIOPTER CLAMP

Search across all available documentation for this part.

Obsolete

O.C. White Co.

LAMP MAGNIFIER 3 DIOPTER CLAMP

Technical Specifications

Parameters and characteristics commom to parts in this series

LAMP MAGNIFIER 3/4 DIOPTER CLAMP

Part	Mounting Type	Arm [x]	Arm [x]	Lens Style/Size [x]	Lens Style/Size [y]	Lens Style/Size [y]	Lens Style/Size	Lens Style/Size [x]	Lamp/Magnifier Type	Color	Bulb	Voltage
O.C. White Co. 72400-SW	Edge Clamp	43 in	1092.2 mm	190.5 mm	6.25 in	158.75 mm	3 Diopter	7.5 in	Lamp, Magnifier	White	Fluorescent	120 V
O.C. White Co. 72400-B	Edge Clamp	43 in	1092.2 mm	190.5 mm	6.25 in	158.75 mm	3 Diopter	7.5 in	Lamp, Magnifier	Black	Fluorescent	120 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Lamp, Magnifier 3 Diopter (1.75x), 7.50" L x 6.25" W (190.50mm x 158.75mm) Fluorescent

Technical documentation and resources
