TG-AH486-20-20-4.0-1A
Activet-Global Technology
THERM PAD 20MMX20M W/ADH GRAY
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TG-AH486-20-20-4.0-1A
Activet-Global Technology
THERM PAD 20MMX20M W/ADH GRAY
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TG-AH486-20-20-4.0-1A |
|---|---|
| Adhesive | Adhesive - One Side |
| Color | Gray |
| Outline [x] | 20 mm |
| Outline [y] | 20 m |
| Shape | Square |
| Shelf Life | 12 Months |
| Shelf Life Start | Date of Purchase |
| Thermal Conductivity | 3.2 W/m-K |
| Thickness | 0.157 in |
| Thickness | 4 mm |
| Type | Conductive Pad, Sheet |
| Usage | Multi |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.96 | |
| 10 | $ 0.86 | |||
| 25 | $ 0.82 | |||
| 50 | $ 0.79 | |||
| 100 | $ 0.76 | |||
| 250 | $ 0.72 | |||
| 500 | $ 0.70 | |||
| 1000 | $ 0.67 | |||
| 5000 | $ 0.62 | |||
Description
General part information
TG-AH486-20-20-4.0-1A

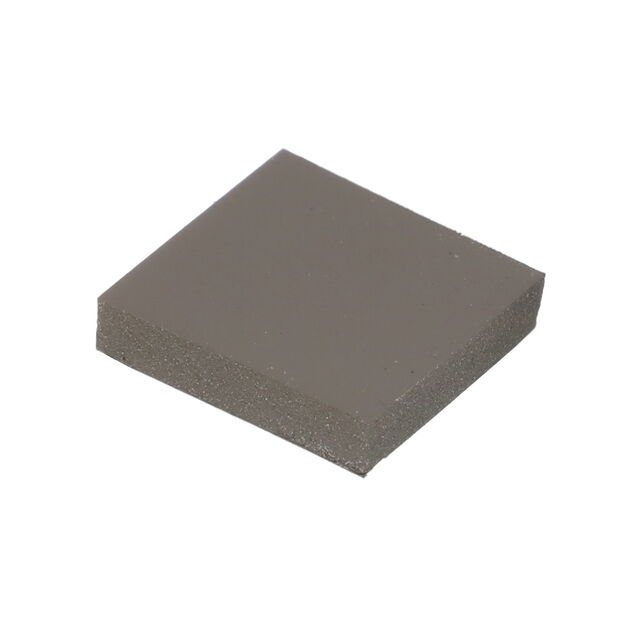

Thermal Pad Gray 20.00mm x 20.00m Square Adhesive - One Side
