HEW.5M.114.XLNP

Active

LEMO

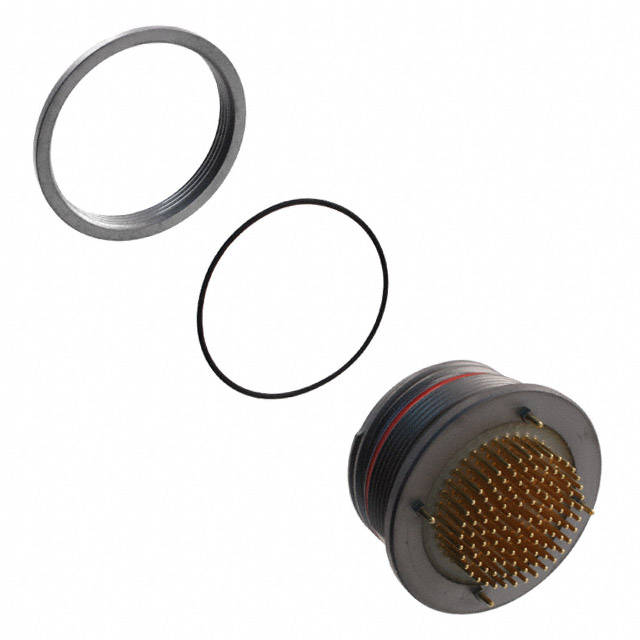

CONN RCPT FMALE 114P GOLD SOLDER

Search across all available documentation for this part.

Active

LEMO

CONN RCPT FMALE 114P GOLD SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	HEW.5M.114.XLNP

Applications	Military, Aerospace, Automotive, Aviation
Color	Gray
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	59 Áin
Contact Finish Thickness - Mating	1.5 Ám
Contact Material	Bronze
Current Rating (Amps)	2 A
Features	Potted
Ingress Protection	IP68 - Dust Tight, Waterproof
Insert Material	Polyetheretherketone (PEEK)
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Panel Mount
Number of Positions	114
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Orientation	W
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Aluminum Alloy
Shell Size - Insert	114
Shielding	Shielded
Termination	Solder

CONN RCPT FMALE 114P GOLD SOLDER

Part	Number of Positions	Shell Material	Mounting Feature	Connector Type	Primary Material	Applications	Insert Material	Features	Shell Finish	Contact Finish - Mating	Current Rating (Amps)	Color	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shell Size - Insert	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Orientation	Ingress Protection	Mounting Type	Shielding
LEMO HEW.5M.114.XLNP	114	Aluminum Alloy	Bulkhead - Front Side Nut	Receptacle, Female Sockets	Metal	Aerospace, Automotive, Aviation, Military	Polyetheretherketone (PEEK)	Potted	Nickel	Gold	2 A	Gray	59 Áin	1.5 Ám	114	Solder	-20 C	80 C	Bronze	W	IP68 - Dust Tight, Waterproof	Panel Mount, Through Hole	Shielded

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

114 Position Circular Connector Receptacle, Female Sockets Solder
