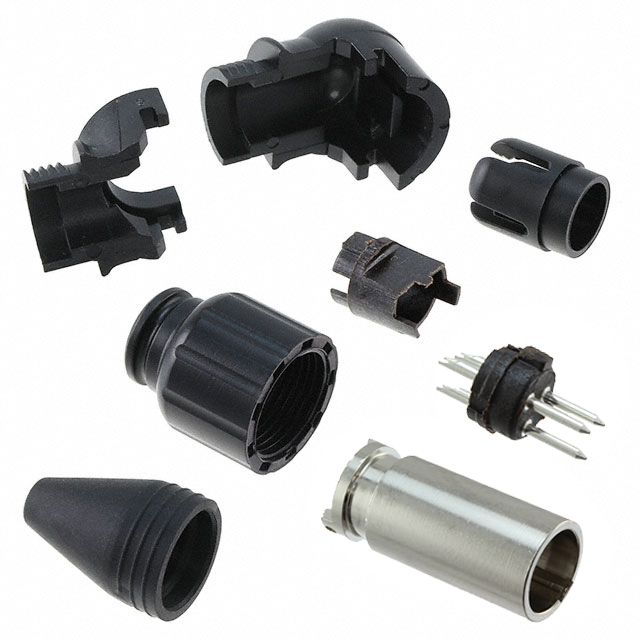

TARA3MX

Active

Switchcraft Inc.

CONN RCPT MALE MINI XLR 3P SLDR

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN RCPT MALE MINI XLR 3P SLDR

Technical Specifications

Parameters and characteristics for this part

Specification	TARA3MX

Applications	Communication Systems, Medical, Audio, Industrial
Cable Opening [Max] [diameter]	3.81 mm
Cable Opening [Max] [diameter]	0.15 in
Cable Opening [Min] [diameter]	0.12 in
Cable Opening [Min] [diameter]	3.05 mm
Color	Black, Silver
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Current Rating (Amps)	4 A
Fastening Type	Latch Lock
Features	Backshell, Strain Relief, Ground, Cable Clamp
Mounting Type	Free Hanging (In-Line), Right Angle
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Copper Alloy
Shell Size - Insert	Mini XLR
Voltage Rating	125 VAC

CONN RCPT MALE MINI XLR 3P SLDR

Part	Features	Voltage Rating	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Fastening Type	Current Rating (Amps)	Primary Material	Shell Finish	Color	Shell Material	Contact Finish - Mating	Mounting Type	Applications	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Orientation	Shell Size - Insert	Contact Material
Switchcraft Inc. TARA3MX	Backshell, Cable Clamp, Ground, Strain Relief	125 VAC	85 °C	-55 °C	Male Pins, Receptacle	Latch Lock	4 A	Metal	Nickel	Black, Silver	Copper Alloy	Silver	Free Hanging (In-Line), Right Angle	Audio, Communication Systems, Industrial, Medical	0.12 in	3.05 mm	3.81 mm	0.15 in	Keyed	Mini XLR	Copper Alloy

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Position Circular Connector Receptacle, Male Pins Solder Cup
