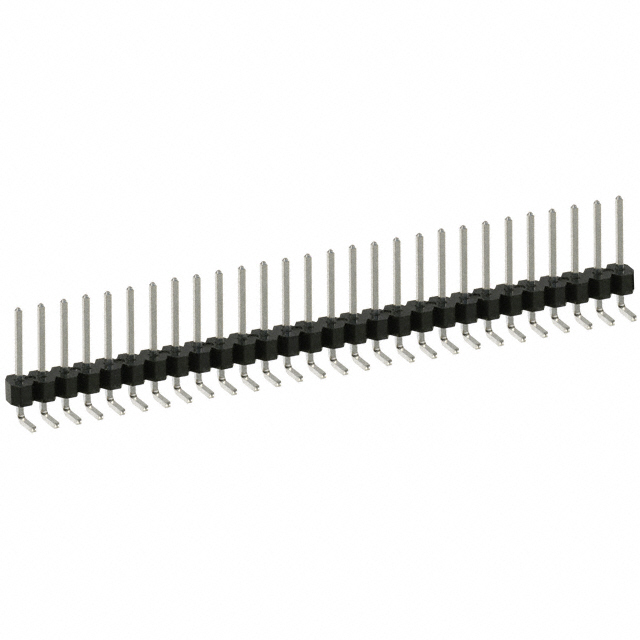

PEC28SGAN

Active

Sullins Connector Solutions

CONN HEADER R/A 28POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

PEC28SGAN

Active

Sullins Connector Solutions

CONN HEADER R/A 28POS 2.54MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PEC28SGAN

Connector Type	Breakaway, Header
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	2.54 çm
Contact Finish Thickness - Mating	100 çin
Contact Finish Thickness - Post	2.54 µm
Contact Finish Thickness - Post	100 µin
Contact Length - Mating [x]	0.318 "
Contact Length - Mating [x]	8.08 mm
Contact Length - Post	2.54 mm
Contact Length - Post	0.1 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	3.56 mm
Insulation Height	0.14 in
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	28
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

PEC28 Series

Part	Contact Material	Number of Positions	Mounting Type	Overall Contact Length	Overall Contact Length	Contact Type	Contact Length - Mating [x]	Contact Length - Mating	Contact Finish - Post	Pitch - Mating	Pitch - Mating	Termination	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Shape	Number of Rows	Current Rating (Amps)	Style	Fastening Type	Contact Length - Post [x]	Contact Length - Post [x]	Insulation Material	Insulation Color	Operating Temperature [Max]	Operating Temperature [Min]	Shrouding	Connector Type	Number of Positions Loaded	Insulation Height	Insulation Height	Material Flammability Rating	Overall Contact Length	Contact Length - Mating [x]	Contact Length - Post	Contact Length - Post	Row Spacing - Mating [x]	Row Spacing - Mating [x]
Sullins Connector Solutions PEC28SACN	Phosphor Bronze	28	Through Hole	16.51 mm	0.65 in	Male Pin	0.23 in	5.84 mm	Tin	0.1 in	2.54 mm	Solder	2.54 µm	100 µin	2.54 çm	100 çin	Square	1	3 A	Board to Board Cable	Push-Pull	0.32 in	8.13 mm	Polybutylene Terephthalate (PBT)	Black	125 °C	-65 ░C	Unshrouded	Breakaway Header	All	0.1 in	2.54 mm	UL94 V-0
Sullins Connector Solutions PEC28SAGN	Phosphor Bronze	28	Through Hole		26.67 mm	Male Pin	0.23 in	5.84 mm	Tin	0.1 in	2.54 mm	Solder	2.54 µm	100 µin	2.54 çm	100 çin	Square	1	3 A	Board to Board Cable	Push-Pull	0.72 "	18.29 mm	Polybutylene Terephthalate (PBT)	Black	125 °C	-65 ░C	Unshrouded	Breakaway Header	All	0.1 in	2.54 mm	UL94 V-0	1.05 in
Sullins Connector Solutions PEC28SGAN	Phosphor Bronze	28	Through Hole Right Angle			Male Pin	0.318 "		Tin	0.1 in	2.54 mm	Solder	2.54 µm	100 µin	2.54 çm	100 çin	Square	1	3 A	Board to Board Cable	Push-Pull			Polybutylene Terephthalate (PBT)	Black	125 °C	-65 ░C	Unshrouded	Breakaway Header	All	0.14 in	3.56 mm	UL94 V-0		8.08 mm	2.54 mm	0.1 in
Sullins Connector Solutions PEC28DBEN	Phosphor Bronze	56	Through Hole Right Angle			Male Pin	0.23 in	5.84 mm	Tin	0.1 in	2.54 mm	Solder	2.54 µm	100 µin	2.54 çm	100 çin	Square	2	3 A	Board to Board Cable	Push-Pull			Polybutylene Terephthalate (PBT)	Black	125 °C	-65 ░C	Unshrouded	Breakaway Header	All	0.24 in	6.1 mm	UL94 V-0			12.7 mm	0.5 in	2.54 mm	0.1 in
Sullins Connector Solutions PEC28DAHN	Phosphor Bronze	56	Through Hole		29.21 mm	Male Pin	0.23 in	5.84 mm	Tin	0.1 in	2.54 mm	Solder	2.54 µm	100 µin	2.54 çm	100 çin	Square	2	3 A	Board to Board Cable	Push-Pull	0.82 in	20.83 mm	Polybutylene Terephthalate (PBT)	Black	125 °C	-65 ░C	Unshrouded	Breakaway Header	All	0.1 in	2.54 mm	UL94 V-0	1.15 in				2.54 mm	0.1 in
Sullins Connector Solutions PEC28DAEN	Phosphor Bronze	56	Through Hole		21.59 mm	Male Pin	0.23 in	5.84 mm	Tin	0.1 in	2.54 mm	Solder	2.54 µm	100 µin	2.54 çm	100 çin	Square	2	3 A	Board to Board Cable	Push-Pull			Polybutylene Terephthalate (PBT)	Black	125 °C	-65 ░C	Unshrouded	Breakaway Header	All	0.1 in	2.54 mm	UL94 V-0	0.85 in		13.21 mm	0.52 "	2.54 mm	0.1 in
Sullins Connector Solutions PEC28SBCN	Phosphor Bronze	28	Through Hole Right Angle			Male Pin	0.23 in	5.84 mm	Tin	0.1 in	2.54 mm	Solder	2.54 µm	100 µin	2.54 çm	100 çin	Square	1	3 A	Board to Board Cable	Push-Pull	0.3 "	7.62 mm	Polybutylene Terephthalate (PBT)	Black	125 °C	-65 ░C	Unshrouded	Breakaway Header	All	0.14 in	3.56 mm	UL94 V-0
Sullins Connector Solutions PEC28DFBN	Phosphor Bronze	56	Through Hole		16.21 mm	Male Pin	0.318 "		Tin	0.1 in	2.54 mm	Solder	2.54 µm	100 µin	2.54 çm	100 çin	Square	2	3 A	Board to Board Cable	Push-Pull			Polybutylene Terephthalate (PBT)	Black	125 °C	-65 ░C	Unshrouded	Breakaway Header	All	0.1 in	2.54 mm	UL94 V-0	0.638 in	8.08 mm	5.58 mm	0.22 in	2.54 mm	0.1 in
Sullins Connector Solutions PEC28SFAN	Phosphor Bronze	28	Through Hole		13.67 mm	Male Pin	0.318 "		Tin	0.1 in	2.54 mm	Solder	2.54 µm	100 µin	2.54 çm	100 çin	Square	1	3 A	Board to Board Cable	Push-Pull	0.12 in	3.05 mm	Polybutylene Terephthalate (PBT)	Black	125 °C	-65 ░C	Unshrouded	Breakaway Header	All	0.1 in	2.54 mm	UL94 V-0	0.538 "	8.08 mm
Sullins Connector Solutions PEC28DAAN	Phosphor Bronze	56	Through Hole		11.43 mm	Male Pin	0.23 in	5.84 mm	Tin	0.1 in	2.54 mm	Solder	2.54 µm	100 µin	2.54 çm	100 çin	Square	2	3 A	Board to Board Cable	Push-Pull	0.12 in	3.05 mm	Polybutylene Terephthalate (PBT)	Black	125 °C	-65 ░C	Unshrouded	Breakaway Header	All	0.1 in	2.54 mm	UL94 V-0	0.45 "				2.54 mm	0.1 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.06
		10	$ 1.79
		100	$ 1.60
		500	$ 1.34
		1000	$ 1.14
		5000	$ 1.09

Description

General part information

PEC28 Series

Connector Header Through Hole, Right Angle 28 position 0.100" (2.54mm)
