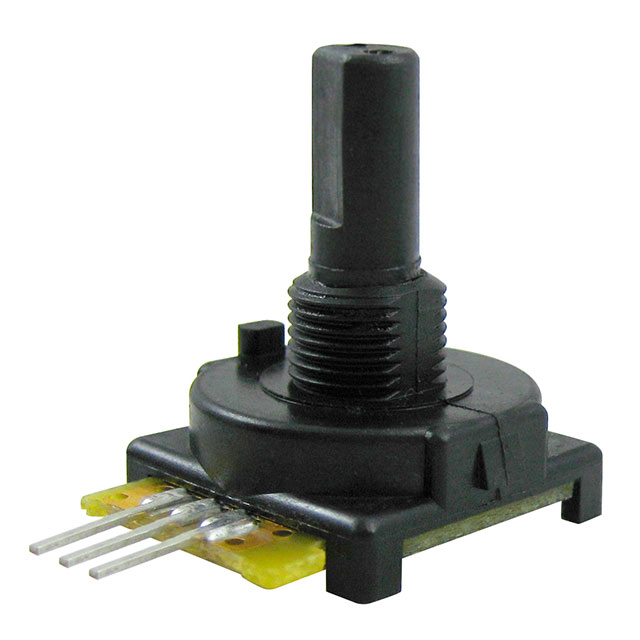

510E1A48F204PC
ObsoleteHoneywell Sensing and Productivity Solutions
ROTARY ENCODER MECHANICAL 4PPR
510E1A48F204PC
ObsoleteHoneywell Sensing and Productivity Solutions
ROTARY ENCODER MECHANICAL 4PPR
Description
General part information
510E1A48F204PC
Rotary Encoder Mechanical 4 Gray Code (Absolute) Right Angle
Technical Specifications
Parameters and characteristics for this part
| Specification | 510E1A48F204PC |
|---|---|
| Actuator Diameter | 6.35 mm |
| Actuator Type | Flatted End |
| Built in Switch | No |
| Detent | Yes |
| Encoder Type | Mechanical |
| Mounting Type | Panel, PCB Through Hole |
| Orientation | Right Angle |
| Output Type | Gray Code (Absolute) |
| Pulses per Revolution | 4 |
| Rotational Life (Cycles Min) | 100 K |
| Termination Style | PC Pin |
