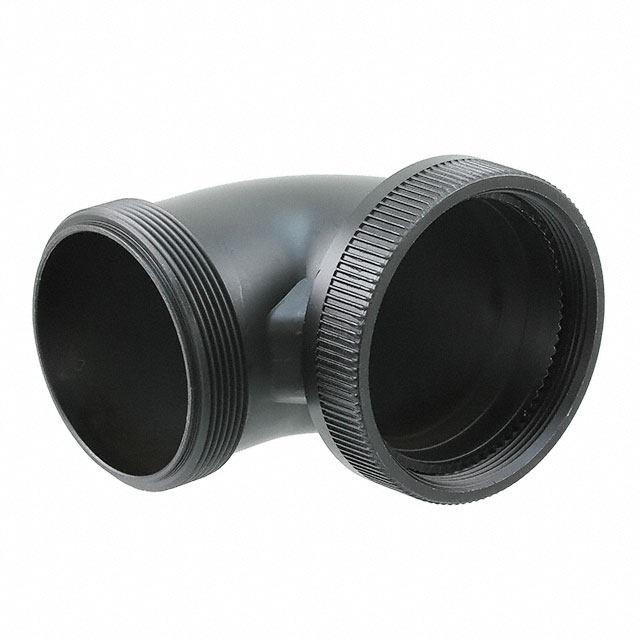

CIRBP40ECHSA

Active

TE Connectivity AMP Connectors

CONN BACKSH ADPT SZ40 2 5/16-16

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN BACKSH ADPT SZ40 2 5/16-16

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CIRBP40ECHSA	CIRBP40 Series

Accessory Type	-	Backnut
Cable Exit	90 °	90 - 180 °
Color	Black	Black
Diameter - Outside [diameter]	2.638 "	2.638 "
Diameter - Outside [diameter]	67 mm	67 mm
For Use With/Related Products	CIRP Series Circular Connectors	CIRP Series Circular Connectors
Ingress Protection	IP67 - Dust Tight, Waterproof	IP67 - Dust Tight, Waterproof
Material	Aluminum Alloy	Aluminum Alloy
Plating	Zinc Cobalt	Zinc Cobalt
Shell Size - Insert	40	40
Shielding	Unshielded	Unshielded
Thread Size	2 5/16-16 UN	2 5/16-16 UN
Type	Backshell, Heat Shrink Adapter	Backshell, Heat Shrink Adapter

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	50	$ 50.64

CONN BACKSH ADPT SZ40 2 5/16-16

Part	Type	Shielding	Cable Exit	Thread Size	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Plating	Shell Size - Insert	Material	For Use With/Related Products	Ingress Protection	Color	Accessory Type
TE Connectivity AMP Connectors CIRBP40SCHSA	Backshell, Heat Shrink Adapter	Unshielded	180 °	2 5/16-16 UN	2.638 "	67 mm	Zinc Cobalt	40	Aluminum Alloy	CIRP Series Circular Connectors	IP67 - Dust Tight, Waterproof
TE Connectivity AMP Connectors CIRBP40LBN								40	Aluminum Alloy	CIRP Series Circular Connectors		Black	Backnut
TE Connectivity AMP Connectors CIRBP40ECHSA	Backshell, Heat Shrink Adapter	Unshielded	90 °	2 5/16-16 UN	2.638 "	67 mm	Zinc Cobalt	40	Aluminum Alloy	CIRP Series Circular Connectors	IP67 - Dust Tight, Waterproof	Black

General part information

Black Connector Backshell, Heat Shrink Adapter 2 5/16-16 UN 40
