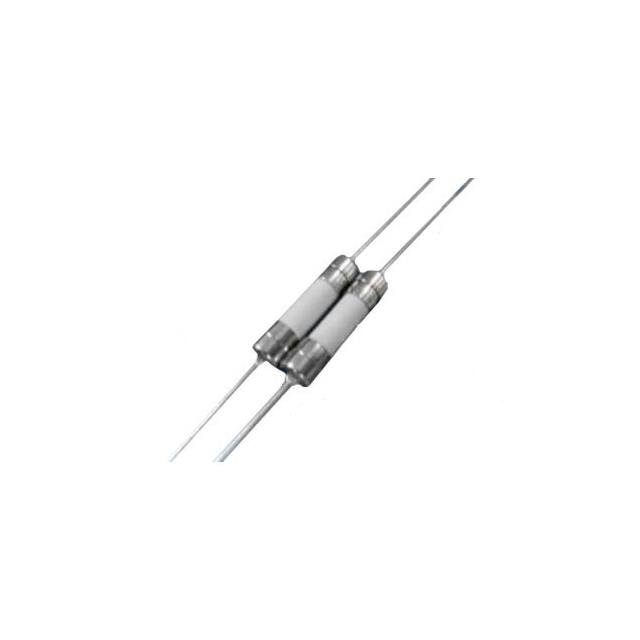

5HFP 1.25-R
BEL MAGNETIC SOLUTIONS
FUSE CERAMIC 1.25A 250VAC 5X20MM
Deep-Dive with AI
Search across all available documentation for this part.
5HFP 1.25-R
BEL MAGNETIC SOLUTIONS
FUSE CERAMIC 1.25A 250VAC 5X20MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 5HFP 1.25-R |
|---|---|
| Approval Agency | SEMKO, CCC, IMQ, cULus, PSE, VDE, CSA, CE |
| Breaking Capacity @ Rated Voltage | 1.5 kA |
| Current Rating (Amps) | 1.25 A |
| DC Cold Resistance | 0.11 Ohms |
| Fuse Type | Cartridge, Ceramic |
| Melting I²t | 1.17 |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case [x] | 5 mm |
| Package / Case [y] | 20 mm |
| Response Time | Fast Blow |
| Size / Dimension [diameter] | 5.5 mm |
| Size / Dimension [diameter] | 0.217 " |
| Size / Dimension [x] | 0.827 in |
| Size / Dimension [x] | 21 mm |
| Voltage Rating - AC | 250 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.35 | |
| 5 | $ 0.29 | |||
| 10 | $ 0.27 | |||
| 50 | $ 0.23 | |||
| 100 | $ 0.21 | |||
| 250 | $ 0.19 | |||
| 500 | $ 0.17 | |||
| 1000 | $ 0.17 | |||
Description
General part information
5HFP 1.25-R
1.25 A 250 V AC DC Fuse Cartridge, Ceramic Through Hole 5mm x 20mm (Axial)
Documents
Technical documentation and resources
No documents available
