4100-H

Active

BRADY

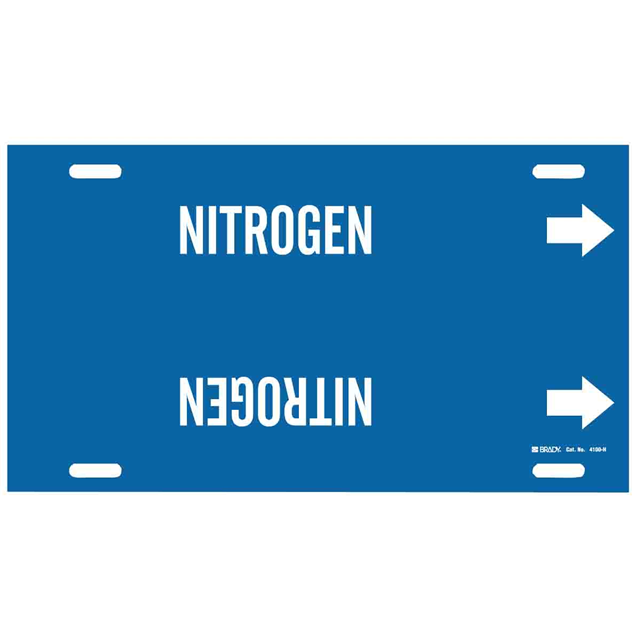

B915 STYLE H WHT/BLUE NITROGEN

Search across all available documentation for this part.

Active

BRADY

B915 STYLE H WHT/BLUE NITROGEN

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	4100-H	4100 Series

Application Specifics	-	Directionality
Applications	-	General
Arrangement	-	Text Only
Color	White Legend, Blue Background	White Legend, Blue Background
Color - Background	-	Blue
Color - Legend	-	White
Features	-	Chemical Resistant, Abrasion Resistant
Label Size	-	0.88 "
Label Size	-	228.6 mm
Label Size	-	9 "
Label Size	-	22.2 mm
Label Size	-	203.2 mm
Label Size	-	50.8 mm
Label Size	-	2 in
Label Size	-	330.2 mm
Label Size	-	13 in
Label Size [x]	812.8 mm	0.81 - 812.8 mm
Label Size [x]	32 in	24 - 32 in
Label Size [y]	10 in	10 in
Label Size [y]	254 mm	254 mm
Label Type	Nitrogen	Nitrogen
Language	-	English
Legend (Symbol Only)	-	Directional Arrow
Legend (Text)	-	Nitrogen
Length	-	71.44 mm
Length	-	2.813 in
Location	-	Outdoor
Material	Plastic	Plastic
Material - Body	-	Plastic
Outside Pipe Diameter (Min)	-	152.4 mm
Outside Pipe Diameter (Min)	-	6 in
Print Type	-	Pre-Printed
Shape	-	Square
Width	-	71.44 mm
Width	-	2.813 in

PIPEMARKER NITROGEN STYLE D BLUE

Part	Application Specifics	Width [y]	Width [y]	Legend (Symbol Only)	Shape	Material - Body	Length	Length	Arrangement	Color - Background	Outside Pipe Diameter (Min) [Min] [diameter]	Outside Pipe Diameter (Min) [Min] [diameter]	Language	Applications	Features	Legend (Text)	Location	Print Type	Color - Legend	Material	Color	Label Type	Label Size [x]	Label Size [x]	Label Size [y]	Label Size [y]	Label Size [custom]	Label Size [custom]	Label Size [custom]	Label Size [custom]	Label Size [y]	Label Size [custom]	Label Size [custom]	Label Size [custom]	Label Size [custom]
BRADY 4100-D	Directionality	71.44 mm	2.813 in	Directional Arrow	Square	Plastic	71.44 mm	2.813 in	Text Only	Blue	152.4 mm	6 in	English	General	Abrasion Resistant, Chemical Resistant	Nitrogen	Outdoor	Pre-Printed	White
BRADY 4100-H																				Plastic	Blue Background, White Legend	Nitrogen	812.8 mm	32 in	10 in	254 mm
BRADY 4100-B																				Plastic	Blue Background, White Legend	Nitrogen					0.88 "	228.6 mm	9 "	22.2 mm
BRADY 4100-G																				Plastic	Blue Background, White Legend	Nitrogen	609.6 mm	24 in	10 in	254 mm
BRADY 4100-A																				Plastic	Blue Background, White Legend	Nitrogen	0.81 in, 20.6 mm								203.2 mm
BRADY 4100-C																				Plastic	Blue Background, White Legend	Nitrogen										50.8 mm	2 in	330.2 mm	13 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 41.28

General part information

B915 STYLE H WHT/BLUE NITROGEN
