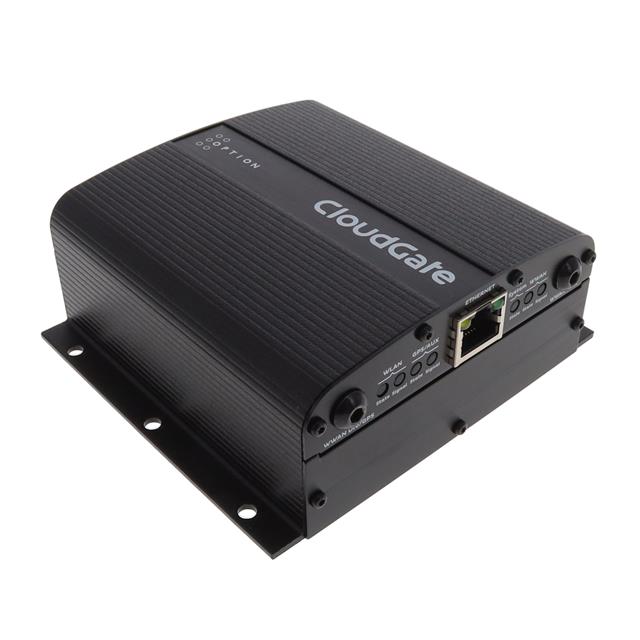

CG0102-11972

Active

Option NV

OPTION CLOUDGATE GATEWAY WITHOUT

Search across all available documentation for this part.

Active

Option NV

OPTION CLOUDGATE GATEWAY WITHOUT

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CG0102-11972	CG0102 Series

Applications	General Purpose	General Purpose
Data Rate (Max) [Max]	14.4 Mbps	14.4 Mbps
Frequency	801 MHz	801 MHz
Function	Gateway	Gateway
Interface	RJ-45 Ethernet	Ethernet, RJ-45 Ethernet
Modulation or Protocol	HSPA+, HSDPA, HSUPA, UMTS, CDMA, GSM, EV-DO, EDGE, GPRS	HSPA+, HSDPA, HSUPA, UMTS, CDMA, GSM, EV-DO, EDGE, GPRS
Power - Output	32.2 dBm	32.2 dBm
Voltage - Supply	-	33 V
Voltage - Supply	-	9 V

GATEWAY HSPA+ ETHERNET

Part	Interface	Modulation or Protocol	Function	Applications	Voltage - Supply [Max]	Voltage - Supply [Min]	Data Rate (Max) [Max]	Frequency	Power - Output
Option NV CG0102-11955	Ethernet	HSPA+	Gateway	General Purpose	33 V	9 V
Option NV CG0102-11972	RJ-45 Ethernet	CDMA, EDGE, EV-DO, GPRS, GSM, HSDPA, HSPA+, HSUPA, UMTS	Gateway	General Purpose			14.4 Mbps	801 MHz	32.2 dBm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 193.10

General part information

3G CDMA, EDGE, EV-DO, GPRS, GSM, HSDPA, HSPA+, HSUPA, UMTS Gateway RJ-45 Ethernet
