5-826947-0
ActiveTE Connectivity AMP Connectors

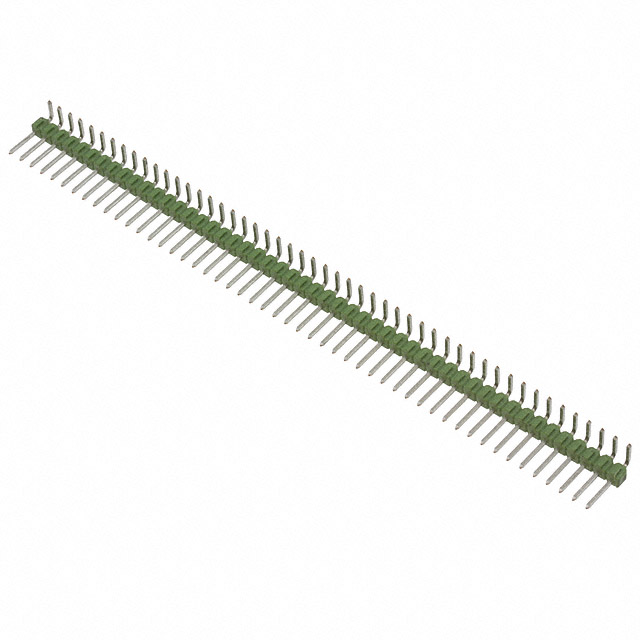

CONN HEADER R/A 50POS 2.54MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
5-826947-0
ActiveTE Connectivity AMP Connectors
CONN HEADER R/A 50POS 2.54MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 5-826947-0 | 826947 Series |
|---|---|---|
| Connector Type | Breakaway, Header | Breakaway, Header |
| Contact Finish - Post | Tin | Tin |
| Contact Finish Thickness - Mating | 78.7 µin | 78.7 µin |
| Contact Finish Thickness - Mating | 2 µm | 2 µm |
| Contact Finish Thickness - Post | 2 çm | 2 çm |
| Contact Finish Thickness - Post | 78.7 çin | 78.7 çin |
| Contact Length - Mating | 6.7 mm | 6.7 mm |
| Contact Length - Mating | 0.264 in | 0.264 in |
| Contact Length - Post | 3.2 mm | 3.2 mm |
| Contact Length - Post [x] | 0.126 in | 0.126 in |
| Contact Material | Copper Alloy | Copper Alloy |
| Contact Shape | Square | Square |
| Contact Type | Male Pin | Male Pin |
| Current Rating (Amps) | 5 A | 5 A |
| Fastening Type | Push-Pull | Push-Pull |
| Insulation Color | Green | Green |
| Insulation Height | 3.05 mm | 3.05 mm |
| Insulation Height | 0.12 in | 0.12 in |
| Insulation Material | Polybutylene Terephthalate (PBT) | Polybutylene Terephthalate (PBT) |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle | Through Hole, Right Angle |
| Number of Positions | 50 | 4 - 50 |
| Number of Positions Loaded | All | All |
| Number of Rows | 1 | 1 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -65 ░C | -65 ░C |
| Pitch - Mating | 0.1 in | 0.1 in |
| Pitch - Mating | 2.54 mm | 2.54 mm |
| Shrouding | Unshrouded | Unshrouded |
| Style | Board to Board, Cable | Board to Board, Cable |
| Termination | Solder | Solder |
826947 Series
CONN HEADER R/A 6POS 2.54MM
| Part | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Length - Post | Contact Length - Post [x] | Contact Length - Mating | Contact Length - Mating | Fastening Type | Style | Insulation Height | Insulation Height | Connector Type | Mounting Type | Contact Shape | Contact Finish - Post | Contact Type | Number of Rows | Operating Temperature [Min] | Operating Temperature [Max] | Termination | Insulation Color | Material Flammability Rating | Number of Positions Loaded | Shrouding | Contact Material | Insulation Material | Number of Positions | Pitch - Mating | Pitch - Mating | Current Rating (Amps) | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 826947-6 | 2 çm | 78.7 çin | 3.2 mm | 0.126 in | 6.7 mm | 0.264 in | Push-Pull | Board to Board, Cable | 3.05 mm | 0.12 in | Breakaway, Header | Through Hole, Right Angle | Square | Tin | Male Pin | 1 | -65 ░C | 105 ░C | Solder | Green | UL94 V-0 | All | Unshrouded | Copper Alloy | Polybutylene Terephthalate (PBT) | 6 | 0.1 in | 2.54 mm | 5 A | 78.7 µin | 2 µm |
TE Connectivity AMP Connectors 826947-4 | 2 Ąm | 78.7 Ąin | 3.2 mm | 0.126 in | 6.7 mm | 0.264 in | Push-Pull | Board to Board, Cable | 3.05 mm | 0.12 in | Breakaway, Header | Through Hole, Right Angle | Square | Tin | Male Pin | 1 | -65 ░C | 105 ░C | Solder | Green | UL94 V-0 | All | Unshrouded | Copper Alloy | Polybutylene Terephthalate (PBT) | 4 | 0.1 in | 2.54 mm | 5 A | ||
TE Connectivity AMP Connectors 826947-8 | 2 çm | 78.7 çin | 3.2 mm | 0.126 in | 6.7 mm | 0.264 in | Push-Pull | Board to Board, Cable | 3.05 mm | 0.12 in | Breakaway, Header | Through Hole, Right Angle | Square | Tin | Male Pin | 1 | -65 ░C | 105 ░C | Solder | Green | UL94 V-0 | All | Unshrouded | Copper Alloy | Polybutylene Terephthalate (PBT) | 8 | 0.1 in | 2.54 mm | 5 A | 78.7 µin | 2 µm |
TE Connectivity AMP Connectors 826947-5 | 2 çm | 78.7 çin | 3.2 mm | 0.126 in | 6.7 mm | 0.264 in | Push-Pull | Board to Board, Cable | 3.05 mm | 0.12 in | Breakaway, Header | Through Hole, Right Angle | Square | Tin | Male Pin | 1 | -65 ░C | 105 ░C | Solder | Green | UL94 V-0 | All | Unshrouded | Copper Alloy | Polybutylene Terephthalate (PBT) | 0.1 in | 2.54 mm | 5 A | 78.7 µin | 2 µm | |
TE Connectivity AMP Connectors 826947-3 | 2 çm | 78.7 çin | 3.2 mm | 0.126 in | 6.7 mm | 0.264 in | Push-Pull | Board to Board, Cable | 3.05 mm | 0.12 in | Breakaway, Header | Through Hole, Right Angle | Square | Tin | Male Pin | 1 | -65 ░C | 105 ░C | Solder | Green | UL94 V-0 | All | Unshrouded | Copper Alloy | Polybutylene Terephthalate (PBT) | 0.1 in | 2.54 mm | 5 A | 78.7 µin | 2 µm | |
TE Connectivity AMP Connectors 5-826947-0 | 2 çm | 78.7 çin | 3.2 mm | 0.126 in | 6.7 mm | 0.264 in | Push-Pull | Board to Board, Cable | 3.05 mm | 0.12 in | Breakaway, Header | Through Hole, Right Angle | Square | Tin | Male Pin | 1 | -65 ░C | 105 ░C | Solder | Green | UL94 V-0 | All | Unshrouded | Copper Alloy | Polybutylene Terephthalate (PBT) | 50 | 0.1 in | 2.54 mm | 5 A | 78.7 µin | 2 µm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.61 | |
| 10 | $ 2.33 | |||
| 250 | $ 2.09 | |||
Description
General part information
826947 Series
Connector Header Through Hole, Right Angle 50 position 0.100" (2.54mm)
