3043789
ActivePhoenix Contact

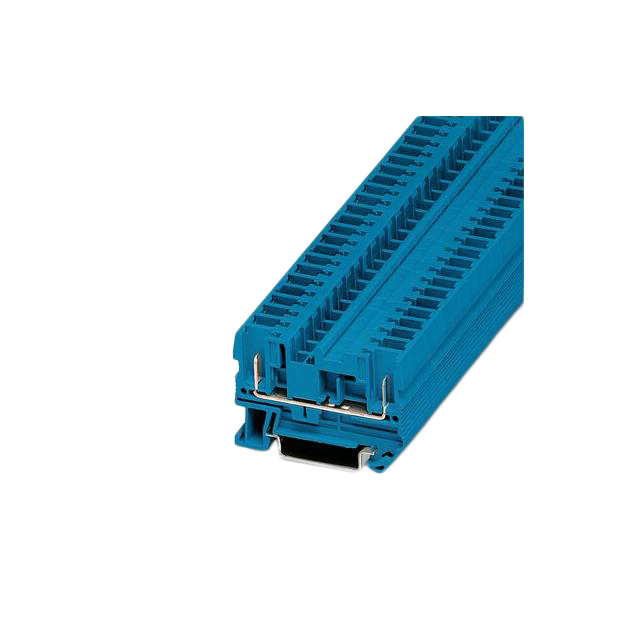

TERM BLK PLUG 2POS 6.2MM BLUE
3043789
ActivePhoenix Contact
TERM BLK PLUG 2POS 6.2MM BLUE
Description
General part information
3043789
2 Position Terminal Block Blue Plug Connection 6.2mm
Technical Specifications
Parameters and characteristics for this part
| Specification | 3043789 |
|---|---|
| Current - IEC | 32 A |
| Height (Max) | 1.732 in |
| Housing Color | Blue |
| Length | 2.201 in |
| Material - Insulation | Polyamide, PA, Nylon |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | DIN Rail |
| Number of Levels | 1 |
| Number of Positions | 2 |
| Stripping Length | 10 mm |
| Terminal Width | 6.2 mm |
| Termination Style | Plug Receptacles |
| Type | Plug Connection |
| Voltage - IEC | 800 V |
| Wire Gauge or Range - AWG (Max) | 28 AWG |
| Wire Gauge or Range - AWG (Min) | 10 AWG |
| Wire Gauge or Range - mm² (Maximum) | 6 mm² |
| Wire Gauge or Range - mm² (Minimum) | 0.08 mm² |
