BWR-12/335-D5A-C
ActiveMurata Power Solutions Inc.
DC DC CONVERTER +/-12V 8W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet

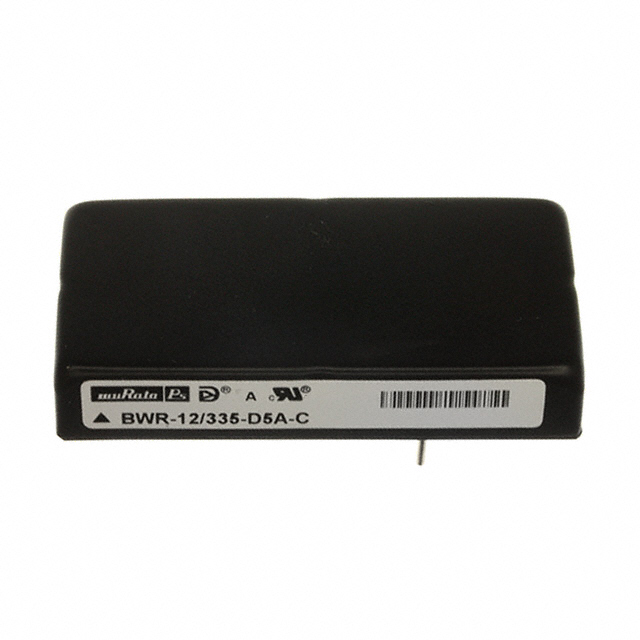

BWR-12/335-D5A-C
ActiveMurata Power Solutions Inc.
DC DC CONVERTER +/-12V 8W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | BWR-12/335-D5A-C | BWR-12 Series |
|---|---|---|
| Applications | ITE (Commercial) | ITE (Commercial) |
| Current - Output (Max) | - | 415 - 830 mA |
| Current - Output (Max) | - | 830 mA |
| Current - Output (Max) [Max] | 335 mA | 335 mA |
| Current - Output (Max) [Min] | 335 mA | 335 mA |
| Efficiency | 78 % | 78 - 84 % |
| Mounting Type | Through Hole | Through Hole |
| Number of Outputs | 2 | 2 |
| Operating Temperature [Max] | 100 °C | 100 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Package / Case | 5-DIP Module | 8-DIP Module, 7 Leads, 5-DIP Module |
| Power (Watts) | 8 W | 8 - 20 W |
| Size / Dimension [x] | 50.8 mm | 50.8 mm |
| Size / Dimension [x] | 2 in | 2 in |
| Size / Dimension [y] | 25.4 mm | 25.4 - 50.8 mm |
| Size / Dimension [y] | 25.4 mm | 2 - 25.4 in |
| Size / Dimension [z] | 0.38 in | 0.38 - 0.45 " |
| Size / Dimension [z] | 9.7 mm | 9.7 - 11.4 mm |
| Type | Isolated Module | Isolated Module |
| Voltage - Input (Max) [Max] | 7.25 V | 7.25 - 75 V |
| Voltage - Input (Min) [Min] | 4.7 V | 4.7 - 18 V |
| Voltage - Isolation | 1000 V | 1000 V |
| Voltage - Output 1 | 12 V | 12 V |
| Voltage - Output 2 | -12 V | -12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
BWR-12 Series
DC DC CONVERTER +/-12V 20W
| Part | Voltage - Isolation | Efficiency | Voltage - Input (Min) [Min] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Operating Temperature [Max] | Operating Temperature [Min] | Current - Output (Max) | Current - Output (Max) | Voltage - Input (Max) [Max] | Voltage - Output 2 | Number of Outputs | Type | Mounting Type | Package / Case | Applications | Power (Watts) | Voltage - Output 1 | Current - Output (Max) [Min] | Current - Output (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Murata Power Solutions Inc. BWR-12/830-D12A-C | 1000 V | 83 % | 9 V | 50.8 mm | 2 in | 0.45 " | 2 in | 50.8 mm | 11.4 mm | 100 °C | -40 °C | 830 mA | 830 mA | 36 V | -12 V | 2 | Isolated Module | Through Hole | 8-DIP Module, 7 Leads | ITE (Commercial) | 20 W | 12 V | ||
Murata Power Solutions Inc. BWR-12/335-D5A-C | 1000 V | 78 % | 4.7 V | 50.8 mm | 2 in | 0.38 in | 25.4 mm | 25.4 mm | 9.7 mm | 100 °C | -40 °C | 7.25 V | -12 V | 2 | Isolated Module | Through Hole | 5-DIP Module | ITE (Commercial) | 8 W | 12 V | 335 mA | 335 mA | ||
Murata Power Solutions Inc. BWR-12/415-D48A-C | 1000 V | 84 % | 18 V | 50.8 mm | 2 in | 0.38 in | 25.4 mm | 25.4 mm | 9.7 mm | 100 °C | -40 °C | 415 mA | 75 V | -12 V | 2 | Isolated Module | Through Hole | 5-DIP Module | ITE (Commercial) | 10 W | 12 V |
Description
General part information
BWR-12 Series
Isolated Module DC DC Converter 2 Output 12V -12V 335mA, 335mA 4.7V - 7.25V Input
