1719 SL002
ActiveALPHA WIRE

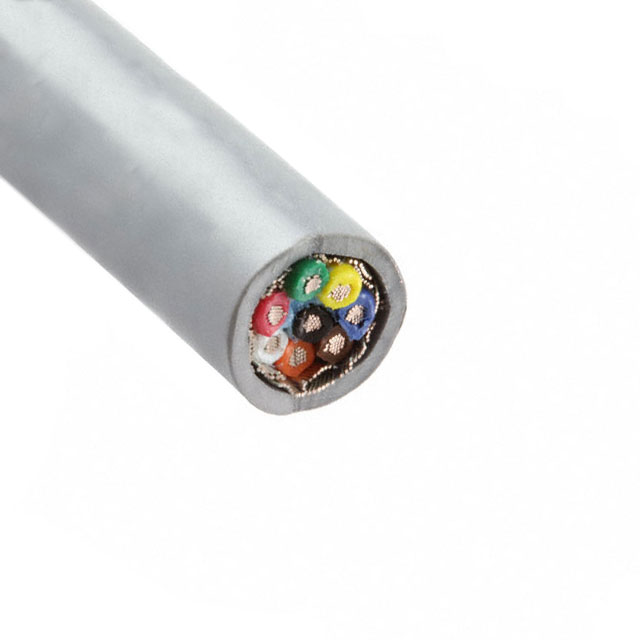

CABLE 8CON 20AWG SLATE SHLD 500'
Deep-Dive with AI
Search across all available documentation for this part.
1719 SL002
ActiveALPHA WIRE
CABLE 8CON 20AWG SLATE SHLD 500'
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1719 SL002 | 1719 Series |
|---|---|---|
| Cable Type | Multi-Conductor | Multi-Conductor |
| Conductor Insulation | Polyethylene (PE) | Polyethylene (PE) |
| Conductor Material | Copper, Tinned | Copper, Tinned |
| Conductor Strand | 34 AWG, 26 | 26 - 34 AWG |
| Jacket (Insulation) Diameter [diameter] | 8.31 mm | 8.31 mm |
| Jacket (Insulation) Diameter [diameter] | 0.327 in | 0.327 in |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) | Poly-Vinyl Chloride (PVC) |
| Jacket (Insulation) Thickness | 0.889 mm | 0.889 mm |
| Jacket (Insulation) Thickness | 0.035 in | 0.035 in |
| Jacket Color | Slate | Slate |
| Length | - | 1000 ft |
| Length | - | 304.8 m |
| Length [x] | 500 ' | 500 ' |
| Length [x] | 152.4 m | 152.4 m |
| Number of Conductors | 8 | 8 |
| Operating Temperature [Max] | 60 °C | 60 °C |
| Operating Temperature [Min] | -20 C | -20 C |
| Shield Coverage | 85 % | 85 % |
| Shield Material | Copper, Tinned | Copper, Tinned |
| Shield Type | Braid | Braid |
| Usage | Control, Communication | Control, Communication |
| Voltage | 600 V | 600 V |
| Wire Gauge | 20 AWG | 20 AWG |
1719 Series
CABLE 8COND 20AWG SHLD 1000'
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Conductor Insulation | Shield Coverage | Jacket Color | Conductor Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Shield Type | Wire Gauge | Cable Type | Length | Length | Conductor Strand | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket (Insulation) Material | Shield Material | Number of Conductors | Voltage | Usage | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
ALPHA WIRE 1719 SL001 | -20 C | 60 °C | Polyethylene (PE) | 85 % | Slate | Copper, Tinned | 8.31 mm | 0.327 in | Braid | 20 AWG | Multi-Conductor | 1000 ft | 304.8 m | 26, 34 AWG | 0.889 mm | 0.035 in | Poly-Vinyl Chloride (PVC) | Copper, Tinned | 8 | 600 V | Communication, Control | ||
ALPHA WIRE 1719 SL002 | -20 C | 60 °C | Polyethylene (PE) | 85 % | Slate | Copper, Tinned | 8.31 mm | 0.327 in | Braid | 20 AWG | Multi-Conductor | 26, 34 AWG | 0.889 mm | 0.035 in | Poly-Vinyl Chloride (PVC) | Copper, Tinned | 8 | 600 V | Communication, Control | 500 ' | 152.4 m |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 1 | $ 3573.86 | |
Description
General part information
1719 Series
8 Conductor Multi-Conductor Cable Slate 20 AWG Braid 500.0' (152.4m)
