A7PSB-0910M
ActiveTE Connectivity AMP Connectors
CABLE D-SUB-AMM09B/AE09M/AFM09B
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
A7PSB-0910M
ActiveTE Connectivity AMP Connectors
CABLE D-SUB-AMM09B/AE09M/AFM09B
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | A7PSB-0910M | A7PSB Series |
|---|---|---|
| 1st Connector | Receptacle, Female Sockets | Receptacle, Female Sockets |
| 2nd Connector | Plug, Male Pins | Plug, Male Pins |
| Color | Ribbon, Multiple | Ribbon, Multiple |
| Contact Finish | Gold | Gold |
| Contact Finish Thickness | 0.76 Ám | 0.76 Ám |
| Contact Finish Thickness | 30 Áin | 30 Áin |
| Length | 10 ft | 6 - 10 ft |
| Length | 3.05 m | 1.83 - 3.05 m |
| Number of Positions | 9 | 9 - 50 |
| Shielding | Unshielded | Unshielded |
| Type | DB9 | DB50, DB15, DB9, DB25, DB37 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 20.26 | |
| 10 | $ 16.78 | |||
| 25 | $ 15.58 | |||
| 50 | $ 14.73 | |||
| 100 | $ 13.92 | |||
| 250 | $ 12.93 | |||
| 500 | $ 12.23 | |||
A7PSB Series
CABLE D-SUB-AMM50B/AE50M/AFM50B
| Part | 2nd Connector | Length | Length | 1st Connector | Contact Finish Thickness | Contact Finish Thickness | Type | Contact Finish | Number of Positions | Shielding | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors A7PSB-5010M | Plug, Male Pins | 10 ft | 3.05 m | Female Sockets, Receptacle | 0.76 Ám | 30 Áin | DB50 | Gold | 50 | Unshielded | Multiple, Ribbon |
TE Connectivity AMP Connectors A7PSB-5006M | Plug, Male Pins | 6 ft | 1.83 m | Female Sockets, Receptacle | 0.76 Ám | 30 Áin | DB50 | Gold | 50 | Unshielded | Multiple, Ribbon |
TE Connectivity AMP Connectors A7PSB-1510M | Plug, Male Pins | 10 ft | 3.05 m | Female Sockets, Receptacle | 0.76 Ám | 30 Áin | DB15 | Gold | 15 | Unshielded | Multiple, Ribbon |
TE Connectivity AMP Connectors A7PSB-0910M | Plug, Male Pins | 10 ft | 3.05 m | Female Sockets, Receptacle | 0.76 Ám | 30 Áin | DB9 | Gold | 9 | Unshielded | Multiple, Ribbon |
TE Connectivity AMP Connectors A7PSB-2510M | Plug, Male Pins | 10 ft | 3.05 m | Female Sockets, Receptacle | 0.76 Ám | 30 Áin | DB25 | Gold | Unshielded | Multiple, Ribbon | |
TE Connectivity AMP Connectors A7PSB-0906G | Plug, Male Pins | 6 ft | 1.83 m | Female Sockets, Receptacle | 0.76 Ám | 30 Áin | DB9 | Gold | 9 | Unshielded | |
TE Connectivity AMP Connectors A7PSB-2506G | Plug, Male Pins | 6 ft | 1.83 m | Female Sockets, Receptacle | 0.76 Ám | 30 Áin | DB25 | Gold | Unshielded | ||
TE Connectivity AMP Connectors A7PSB-2510G | Plug, Male Pins | 10 ft | 3.05 m | Female Sockets, Receptacle | 0.76 Ám | 30 Áin | DB25 | Gold | Unshielded | ||
TE Connectivity AMP Connectors A7PSB-5010G | Plug, Male Pins | 10 ft | 3.05 m | Female Sockets, Receptacle | 0.76 Ám | 30 Áin | DB50 | Gold | 50 | Unshielded | |
TE Connectivity AMP Connectors A7PSB-5006G | Plug, Male Pins | 6 ft | 1.83 m | Female Sockets, Receptacle | 0.76 Ám | 30 Áin | DB50 | Gold | 50 | Unshielded |
Description
General part information
A7PSB Series

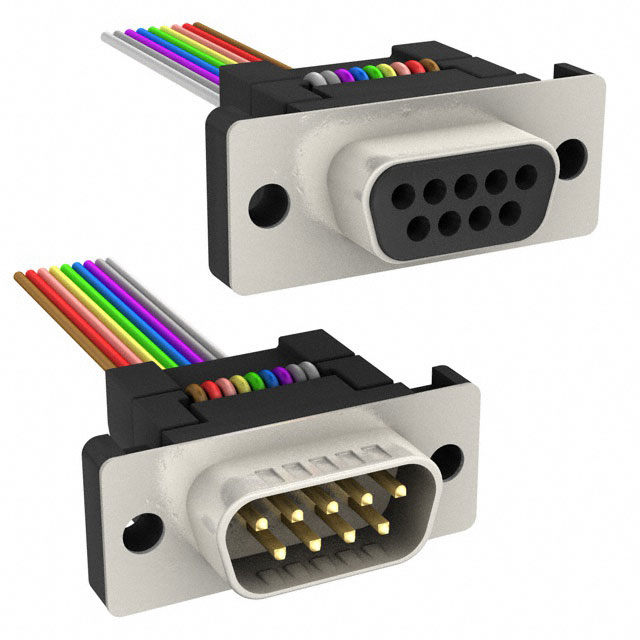

D-Sub Cable Assembly DB9 Multiple, Ribbon 10.00' (3.05m) Receptacle, Female Sockets to Plug, Male Pins Unshielded
Documents
Technical documentation and resources
