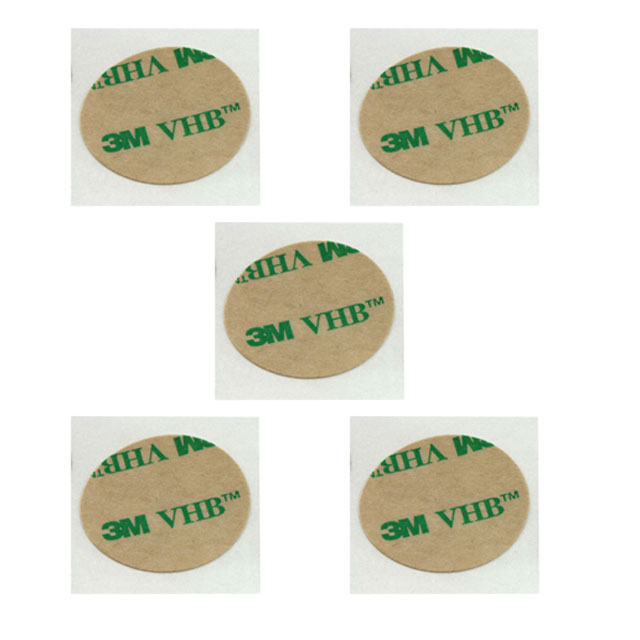

Specification	F9460PCCIR-1.5(5)

Adhesive	Acrylic, 100MP
Backing	Polycoated Kraft Liner
Carrier	Polycoated Kraft Liner
Color	Clear
Shelf Life	24 Months
Shelf Life Start	Date of Manufacture
Storage/Refrigeration Temperature (Maximum)	80 °F
Storage/Refrigeration Temperature (Minimum)	60 °F
Tape Type	Adhesive Transfer
Temperature Range (Single)	300 °F
Thickness	0.006 in
Thickness - Adhesive	0.002 in
Thickness - Backing, Carrier	0.004 in
Usage	High Temperature Applications, Attachment
Width	1.5 in

F9460PC Series

...

Part	Shelf Life Start	Shelf Life	Storage/Refrigeration Temperature (Maximum)	Storage/Refrigeration Temperature (Minimum)	Thickness	Carrier	Backing	Length (ft)	Length (yd)	Color	Thickness - Adhesive	Tape Type	Thickness - Backing, Carrier	Adhesive	Width	Temperature Range (Max)	Length	Temperature Range (Single)	Usage
3M (TC) F9460PC-0.25-60	Date of Manufacture	24 Months	80 °F	60 °F	0.006 in	Polycoated Kraft Liner	Polycoated Kraft Liner	180 ft	60 yd	Clear	0.002 in	Adhesive Transfer	0.004 in	Acrylic 100MP	0.25 in	300 °F
3M (TC) 3M F9460PC 4.72" X 60YD	Date of Manufacture	24 Months	80 °F	60 °F	0.006 in	Polycoated Kraft Liner	Polycoated Kraft Liner	180 ft	60 yd	Clear	0.002 in	Adhesive Transfer	0.004 in	Acrylic 100MP	4.72 in	300 °F
3M (TC) F9460PC-0.75-6(100)	Date of Manufacture	24 Months	80 °F	60 °F	0.006 in	Polycoated Kraft Liner	Polycoated Kraft Liner			Clear	0.002 in	Adhesive Transfer	0.004 in	Acrylic 100MP	0.75 in	300 °F	0.5 ft
3M (TC) F9460PC-0.75-60	Date of Manufacture	24 Months	80 °F	60 °F	0.006 in	Polycoated Kraft Liner	Polycoated Kraft Liner	180 ft	60 yd	Clear	0.002 in	Adhesive Transfer	0.004 in	Acrylic 100MP	0.75 in	300 °F
3M (TC) 3M F9460PC 0.75" X 9"-100	Date of Manufacture	24 Months	80 °F	60 °F	0.006 in	Polycoated Kraft Liner	Polycoated Kraft Liner			Clear	0.002 in	Adhesive Transfer	0.004 in	Acrylic 100MP	0.75 in	300 °F	228.6 mm
3M (TC) F9460PCSQ-1.5(100)	Date of Manufacture	24 Months	80 °F	60 °F	0.006 in	Polycoated Kraft Liner	Polycoated Kraft Liner			Clear	0.002 in	Adhesive Transfer	0.004 in	Acrylic 100MP	1.5 in		1.5 in	300 °F	Attachment High Temperature Applications
3M (TC) 3M F9460PC 3" X 4"-25	Date of Manufacture	24 Months	80 °F	60 °F	0.006 in	Polycoated Kraft Liner	Polycoated Kraft Liner			Clear	0.002 in	Adhesive Transfer	0.004 in	Acrylic 100MP	3 in	300 °F	4 in
3M (TC) F9460PC-0.125-60	Date of Manufacture	24 Months	80 °F	60 °F	0.006 in	Polycoated Kraft Liner	Polycoated Kraft Liner	180 ft	60 yd	Clear	0.002 in	Adhesive Transfer	0.004 in	Acrylic 100MP	0.13 in	300 °F
3M (TC) 3M F9460PC 3" X 1.25"-25	Date of Manufacture	24 Months	80 °F	60 °F	0.006 in	Polycoated Kraft Liner	Polycoated Kraft Liner			Clear	0.002 in	Adhesive Transfer	0.004 in	Acrylic 100MP	3 in	300 °F	1.25 in
3M (TC) 3M F9460PC CIRCLE-4.000"-100	Date of Manufacture	24 Months	80 °F	60 °F	0.006 in	Polycoated Kraft Liner	Polycoated Kraft Liner			Clear	0.002 in	Adhesive Transfer	0.004 in	Acrylic 100MP	4 in	300 °F
