1986628
ActivePhoenix Contact

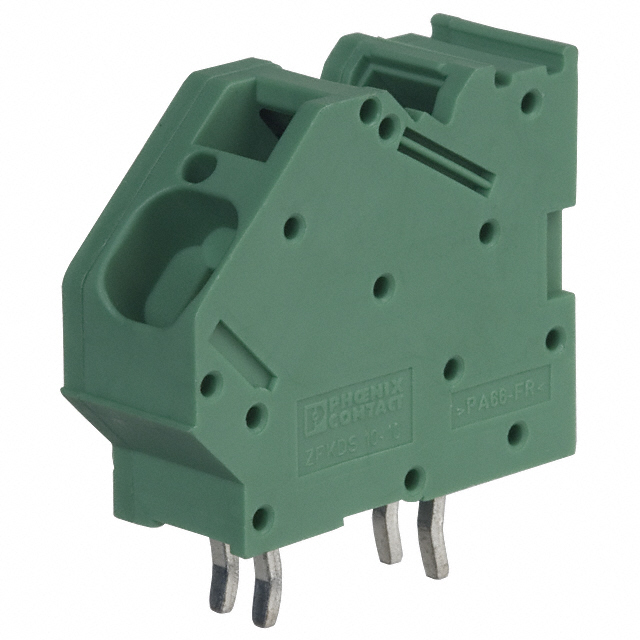

TERM BLOCK 1POS 45DEG PCB
1986628
ActivePhoenix Contact
TERM BLOCK 1POS 45DEG PCB
Description
General part information
1986628
1 Position Wire to Board Terminal Block 45° (135°) Angle with Board Through Hole
Technical Specifications
Parameters and characteristics for this part
| Specification | 1986628 |
|---|---|
| Color | Green |
| Current | 65 A |
| Features | Interlocking (Side) |
| Housing Material | Nylon, Polyamide, PA |
| Mating Orientation (Angle) | 45 ° |
| Mating Orientation (Angle) (Alternate) | 135 ° |
| Mating Orientation (Description) | Angle with Board |
| Mounting Type | Through Hole |
| Number of Levels | 1 |
| Positions Per Level | 1 |
| Voltage | 600 V |
| Wire Gauge (AWG) (Max) | 24 AWG |
| Wire Gauge (AWG) (Min) | 6 AWG |
| Wire Termination | Spring Cage, Screwless, Tension Clamp |
