CCT323047-100-16-00

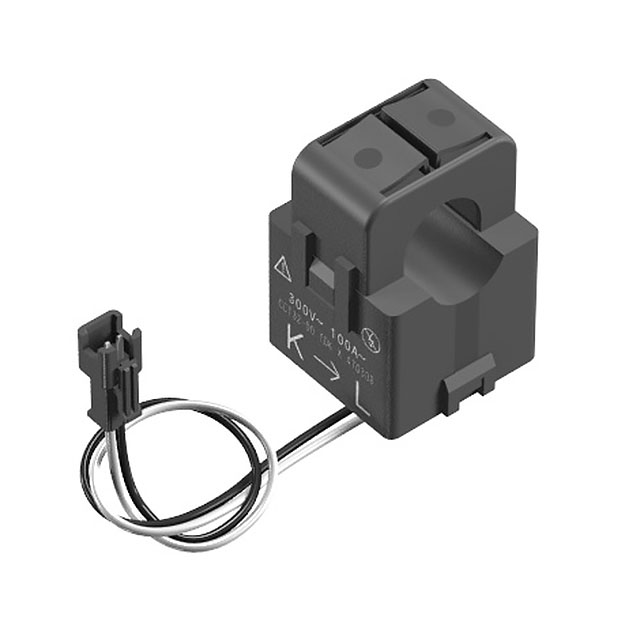

100 A Current Sense Transformer 50/60Hz 285Ohm Chassis Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | CCT323047-100-16-00 |
|---|---|
| Current Rating | 100 A |
| Current Ratio | 3000 ratio |
| DC Resistance (DCR) | 285 Ohm |
| Frequency Range | 60Hz, 50Hz |
| Frequency Range (Max) | 60 Hz |
| Frequency Range (Min) | 50 Hz |
| Height - Seated (Max) | 1.87 in |
| Mounting Type | Chassis Mount |
| Size / Dimension Length | 1.378 in |
| Size / Dimension Width | 1.28 in |
| Termination Style | Wire Leads with Connector |
| Type | Non-Invasive (Split Core) |
| Weight | 0.155 lb |
