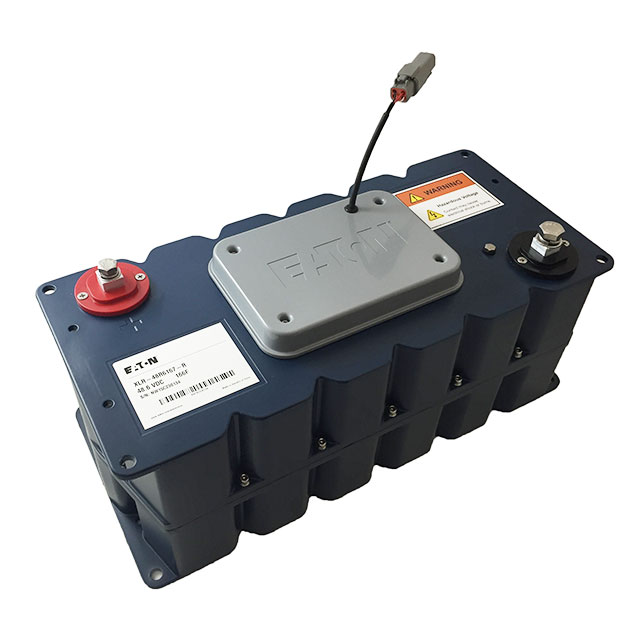

XLR-51R3187-R
ActiveEaton - Electronics Division
CAP 188F 0% +20% 51.3V MODULE
XLR-51R3187-R
ActiveEaton - Electronics Division
CAP 188F 0% +20% 51.3V MODULE
Description
General part information
XLR-51R3187-R
188 F (EDLC) Supercapacitor 51.3 V Module 5mOhm 1500 Hrs @ 65°C
Technical Specifications
Parameters and characteristics for this part
| Specification | XLR-51R3187-R |
|---|---|
| Capacitance | 188 F |
| ESR (Equivalent Series Resistance) | 5 mOhm |
| Height - Seated (Max) | 6.905 in |
| Lifetime | 1500 Hrs |
| Mounting Type | User Defined |
| Operating Temperature (Max) | 65 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Module |
| Size / Dimension Length | 16.516 in |
| Size / Dimension Width | 7.657 in |
| Termination | Screw Terminals |
| Tolerance (Negative) | 0 % |
| Tolerance (Positive) | 20 % |
| Voltage - Rated | 51.3 V |
