S1012
ActiveSwitchcraft Inc.

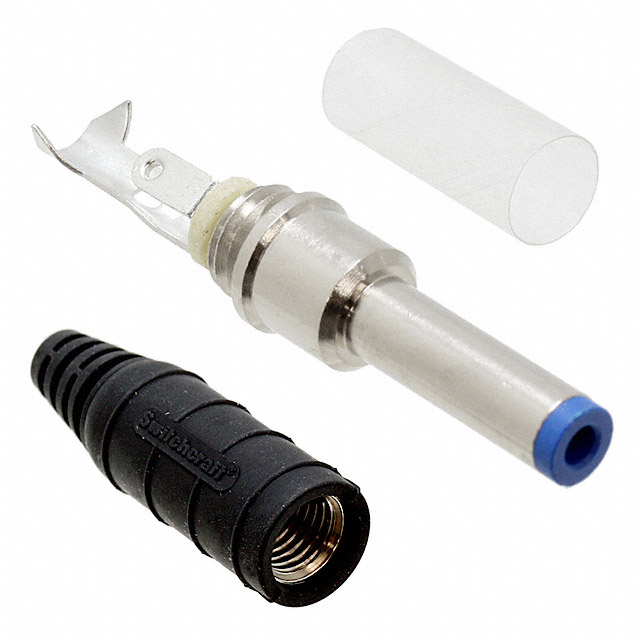

CONN PWR PLUG 2X5.5MM SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
S1012
ActiveSwitchcraft Inc.
CONN PWR PLUG 2X5.5MM SOLDER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | S1012 | S10 Series |
|---|---|---|
| Body Color | Silver, Black | Silver, Black |
| Body Material | Copper Alloy | Copper Alloy |
| Connector Type | Plug | Plug |
| Contact Material | Copper Alloy | Copper Alloy |
| Contact Material - Plating | Tin | Tin |
| Contact Material - Plating | - | Silver |
| Current Rating (Amps) | 11 A | 11 A |
| Diameter - Inside | - | 0.375 in |
| Diameter - Inside | - | 0.375 in |
| Diameter - Inside | - | 9.53 mm |
| Diameter - Outside | - | 0.625 " |
| Diameter - Outside | - | 0.625 in |
| Diameter - Outside | - | 15.88 mm |
| Diameter - Shoulder | - | 0.625 in |
| Diameter - Shoulder | - | 15.88 mm |
| Diameter - Shoulder | - | 0.625 in |
| Features | Strain Relief | Strain Relief, Thread Lock, Cable Clamp |
| Gender | Female | Female |
| Housing Material | Elastomer | Elastomer |
| Includes | 1 Connector, 1 Handle | 1 Connector, 1 Handle, 1 Insulator Tube |
| Industry Recognized Mating Diameter [diameter] | 0.079 in, 0.217 " | 0.079 - 0.217 in |
| Industry Recognized Mating Diameter [diameter] | 2 mm, 5.5 mm | 2 - 5.5 mm |
| Ingress Protection | - | IP68 |
| Insulation Color | Blue | Blue |
| Internal Switch(s) | False | False |
| Length - Below Head | - | 0.79 mm |
| Length - Below Head | - | 0.031 in |
| Length - Below Head | - | 0.03125 in |
| Material | - | Copper Alloy, Plastic, Fibre |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Positions/Contacts | 3 Conductors, 2 Conductors | 2 - 3 Conductors |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Plating | - | Nickel |
| Shielding | Unshielded | Unshielded |
| Termination | Solder | Solder |
| Thickness | - | 0.02 in |
| Thickness | - | 0.031 - 0.51 mm |
| Thickness | - | 0.03125 in |
| Thickness | - | 0.79 mm |
| Thickness - Overall | - | 1.63 mm |
| Thickness - Overall | - | 0.064 in |
| Thread/Screw/Hole Size | - | 0.375 in |
| Type | - | Flat |
| Voltage - Rated | 24 VDC | 24 VDC |
S10 Series
CONN PWR PLUG 2X5.5MM SOLDER
| Part | Body Color | Operating Temperature [Min] | Operating Temperature [Max] | Connector Type | Contact Material | Housing Material | Gender | Shielding | Number of Positions/Contacts | Contact Material - Plating | Body Material | Features | Includes | Industry Recognized Mating Diameter [diameter] | Industry Recognized Mating Diameter [diameter] | Termination | Mounting Type | Current Rating (Amps) | Internal Switch(s) | Insulation Color | Voltage - Rated | Contact Material - Plating [custom] | Ingress Protection | Diameter - Inside [diameter] | Diameter - Inside [diameter] | Diameter - Inside [diameter] | Material | Plating | Thread/Screw/Hole Size | Thickness | Thickness | Diameter - Outside [diameter] | Diameter - Outside [diameter] | Diameter - Outside [diameter] | Type | Thickness | Thickness | Diameter - Shoulder | Diameter - Shoulder | Diameter - Shoulder | Length - Below Head | Length - Below Head | Length - Below Head | Thickness - Overall | Thickness - Overall |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Switchcraft Inc. S1017 | Black, Silver | -40 °C | 105 ░C | Plug | Copper Alloy | Elastomer | Female | Unshielded | 2 Conductors, 3 Conductors | Tin | Copper Alloy | Strain Relief | 1 Connector, 1 Handle | 0.079 in, 0.217 " | 2 mm, 5.5 mm | Solder | Free Hanging (In-Line) | 11 A | Blue | 24 VDC | |||||||||||||||||||||||||
Switchcraft Inc. S1012 | Black, Silver | -40 °C | 105 ░C | Plug | Copper Alloy | Elastomer | Female | Unshielded | 2 Conductors, 3 Conductors | Tin | Copper Alloy | Strain Relief | 1 Connector, 1 Handle | 0.079 in, 0.217 " | 2 mm, 5.5 mm | Solder | Free Hanging (In-Line) | 11 A | Blue | 24 VDC | |||||||||||||||||||||||||
Switchcraft Inc. S10KS15 | Black, Silver | -40 °C | 105 ░C | Plug | Copper Alloy | Elastomer | Female | Unshielded | 2 Conductors, 3 Conductors | Copper Alloy | Cable Clamp, Strain Relief, Thread Lock | 1 Connector, 1 Handle, 1 Insulator Tube | 0.079 in, 0.217 " | 2 mm, 5.5 mm | Solder | Free Hanging (In-Line) | 11 A | Blue | 24 VDC | Silver | IP68 | ||||||||||||||||||||||||
Switchcraft Inc. S1015 | Black, Silver | -40 °C | 105 ░C | Plug | Copper Alloy | Elastomer | Female | Unshielded | 2 Conductors, 3 Conductors | Tin | Copper Alloy | Strain Relief | 1 Connector, 1 Handle | 0.079 in, 0.217 " | 2 mm, 5.5 mm | Solder | Free Hanging (In-Line) | 11 A | Blue | 24 VDC | |||||||||||||||||||||||||
Switchcraft Inc. S10451 | 0.375 in | 0.375 in | 9.53 mm | Copper Alloy | Nickel | 0.375 in | 0.02 in | 0.51 mm | 0.625 " | 0.625 in | 15.88 mm | Flat | |||||||||||||||||||||||||||||||||
Switchcraft Inc. S1028 | 0.375 in | 0.375 in | 9.53 mm | Plastic | 0.031 in | 0.625 " | 0.625 in | 15.88 mm | Flat | 0.03125 in | 0.79 mm | ||||||||||||||||||||||||||||||||||
Switchcraft Inc. S10221 | 0.375 in | 0.375 in | 9.53 mm | Nickel | 0.375 in | 0.02 in | 0.51 mm | 0.625 " | 0.625 in | 15.88 mm | Flat | ||||||||||||||||||||||||||||||||||
Switchcraft Inc. S1029 | 0.375 in | 0.375 in | 9.53 mm | Fibre | 0.375 in | 0.625 " | 0.625 in | 15.88 mm | 0.625 in | 15.88 mm | 0.625 in | 0.79 mm | 0.031 in | 0.03125 in | 1.63 mm | 0.064 in | |||||||||||||||||||||||||||||
Switchcraft Inc. S10KS12 | Black, Silver | -40 °C | 105 ░C | Plug | Copper Alloy | Elastomer | Female | Unshielded | 2 Conductors, 3 Conductors | Copper Alloy | Cable Clamp, Strain Relief, Thread Lock | 1 Connector, 1 Handle, 1 Insulator Tube | 0.079 in, 0.217 " | 2 mm, 5.5 mm | Solder | Free Hanging (In-Line) | 11 A | Blue | 24 VDC | Silver | IP68 | ||||||||||||||||||||||||
Switchcraft Inc. S10KS17 | Black, Silver | -40 °C | 105 ░C | Plug | Copper Alloy | Elastomer | Female | Unshielded | 2 Conductors, 3 Conductors | Copper Alloy | Cable Clamp, Strain Relief, Thread Lock | 1 Connector, 1 Handle, 1 Insulator Tube | 0.079 in, 0.217 " | 2 mm, 5.5 mm | Solder | Free Hanging (In-Line) | 11 A | Blue | 24 VDC | Silver | IP68 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 8.29 | |
| 10 | $ 7.46 | |||
| 100 | $ 6.67 | |||
| 1000 | $ 5.56 | |||
Description
General part information
S10 Series
Power Barrel Connector Plug 2.00mm ID (0.079"), 5.50mm OD (0.217") Free Hanging (In-Line)
