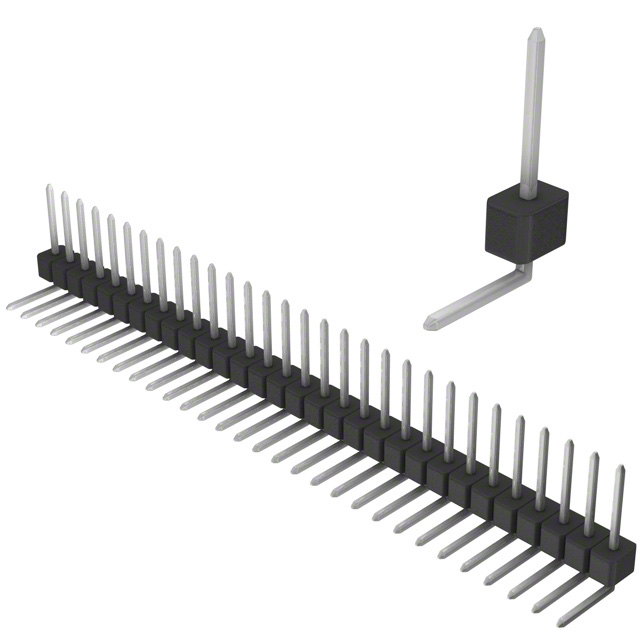

PEC30SGBN

Active

Sullins Connector Solutions

CONN HEADER R/A 30POS 2.54MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PEC30SGBN

Connector Type	Breakaway, Header
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	2.54 çm
Contact Finish Thickness - Mating	100 çin
Contact Finish Thickness - Post	2.54 µm
Contact Finish Thickness - Post	100 µin
Contact Length - Mating [x]	0.318 "
Contact Length - Mating [x]	8.08 mm
Contact Length - Post [x]	5.08 mm
Contact Length - Post [x]	0.2 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	3.56 mm
Insulation Height	0.14 in
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	30
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

PEC30 Series

Part	Termination	Style	Contact Length - Post	Contact Length - Post	Material Flammability Rating	Number of Rows	Operating Temperature [Max]	Operating Temperature [Min]	Contact Length - Mating [x]	Contact Length - Mating [x]	Insulation Color	Number of Positions	Current Rating (Amps)	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Material	Contact Type	Fastening Type	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Mounting Type	Number of Positions Loaded	Insulation Material	Insulation Height	Insulation Height	Contact Shape	Contact Finish - Post	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Connector Type	Shrouding	Overall Contact Length	Overall Contact Length	Contact Length - Post [x]	Contact Length - Post [x]	Contact Length - Mating
Sullins Connector Solutions PEC30DFBN	Solder	Board to Board Cable	0.22 in	5.58 mm	UL94 V-0	2	125 °C	-65 ░C	0.318 "	8.08 mm	Black	60	3 A	2.54 µm	100 µin	Phosphor Bronze	Male Pin	Push-Pull	0.1 in	2.54 mm	2.54 çm	100 çin	Through Hole	All	Polybutylene Terephthalate (PBT)	0.1 in	2.54 mm	Square	Tin	2.54 mm	0.1 in	Breakaway Header	Unshrouded	16.21 mm	0.638 in
Sullins Connector Solutions PEC30DAHN	Solder	Board to Board Cable			UL94 V-0	2	125 °C	-65 ░C	0.23 in		Black	60	3 A	2.54 µm	100 µin	Phosphor Bronze	Male Pin	Push-Pull	0.1 in	2.54 mm	2.54 çm	100 çin	Through Hole	All	Polybutylene Terephthalate (PBT)	0.1 in	2.54 mm	Square	Tin	2.54 mm	0.1 in	Breakaway Header	Unshrouded	29.21 mm	1.15 in	20.83 mm	0.82 in	5.84 mm
Sullins Connector Solutions PEC30SGBN	Solder	Board to Board Cable			UL94 V-0	1	125 °C	-65 ░C	0.318 "	8.08 mm	Black	30	3 A	2.54 µm	100 µin	Phosphor Bronze	Male Pin	Push-Pull	0.1 in	2.54 mm	2.54 çm	100 çin	Through Hole Right Angle	All	Polybutylene Terephthalate (PBT)	0.14 in	3.56 mm	Square	Tin			Breakaway Header	Unshrouded			5.08 mm	0.2 in
Sullins Connector Solutions PEC30SFBN	Solder	Board to Board Cable	0.22 in	5.58 mm	UL94 V-0	1	125 °C	-65 ░C	0.318 "	8.08 mm	Black	30	3 A	2.54 µm	100 µin	Phosphor Bronze	Male Pin	Push-Pull	0.1 in	2.54 mm	2.54 çm	100 çin	Through Hole	All	Polybutylene Terephthalate (PBT)	0.1 in	2.54 mm	Square	Tin			Breakaway Header	Unshrouded	16.21 mm	0.638 in
Sullins Connector Solutions PEC30DFCN	Solder	Board to Board Cable			UL94 V-0	2	125 °C	-65 ░C	0.318 "	8.08 mm	Black	60	3 A	2.54 µm	100 µin	Phosphor Bronze	Male Pin	Push-Pull	0.1 in	2.54 mm	2.54 çm	100 çin	Through Hole	All	Polybutylene Terephthalate (PBT)	0.1 in	2.54 mm	Square	Tin	2.54 mm	0.1 in	Breakaway Header	Unshrouded	18.75 mm	0.738 "	8.13 mm	0.32 in
Sullins Connector Solutions PEC30SAEN	Solder	Board to Board Cable	0.52 "	13.21 mm	UL94 V-0	1	125 °C	-65 ░C	0.23 in		Black	30	3 A	2.54 µm	100 µin	Phosphor Bronze	Male Pin	Push-Pull	0.1 in	2.54 mm	2.54 çm	100 çin	Through Hole	All	Polybutylene Terephthalate (PBT)	0.1 in	2.54 mm	Square	Tin			Breakaway Header	Unshrouded	21.59 mm	0.85 in			5.84 mm
Sullins Connector Solutions PEC30DAGN	Solder	Board to Board Cable			UL94 V-0	2	125 °C	-65 ░C	0.23 in		Black	60	3 A	2.54 µm	100 µin	Phosphor Bronze	Male Pin	Push-Pull	0.1 in	2.54 mm	2.54 çm	100 çin	Through Hole	All	Polybutylene Terephthalate (PBT)	0.1 in	2.54 mm	Square	Tin	2.54 mm	0.1 in	Breakaway Header	Unshrouded	26.67 mm	1.05 in	18.29 mm	0.72 "	5.84 mm
Sullins Connector Solutions PEC30DBAN	Solder	Board to Board Cable	0.1 in	2.54 mm	UL94 V-0	2	125 °C	-65 ░C	0.23 in		Black	60	3 A	2.54 µm	100 µin	Phosphor Bronze	Male Pin	Push-Pull	0.1 in	2.54 mm	2.54 çm	100 çin	Through Hole Right Angle	All	Polybutylene Terephthalate (PBT)	0.24 in	6.1 mm	Square	Tin	2.54 mm	0.1 in	Breakaway Header	Unshrouded					5.84 mm
Sullins Connector Solutions PEC30DABN	Solder	Board to Board Cable	0.23 in	5.84 mm	UL94 V-0	2	125 °C	-65 ░C	0.23 in		Black	60	3 A	2.54 µm	100 µin	Phosphor Bronze	Male Pin	Push-Pull	0.1 in	2.54 mm	2.54 çm	100 çin	Through Hole	All	Polybutylene Terephthalate (PBT)	0.1 in	2.54 mm	Square	Tin	2.54 mm	0.1 in	Breakaway Header	Unshrouded	14.22 mm	0.56 in			5.84 mm
Sullins Connector Solutions PEC30DGBN	Solder	Board to Board Cable			UL94 V-0	2	125 °C	-65 ░C	0.318 "	8.08 mm	Black	60	3 A	2.54 µm	100 µin	Phosphor Bronze	Male Pin	Push-Pull	0.1 in	2.54 mm	2.54 çm	100 çin	Through Hole Right Angle	All	Polybutylene Terephthalate (PBT)	0.24 in	6.1 mm	Square	Tin	2.54 mm	0.1 in	Breakaway Header	Unshrouded			5.08 mm	0.2 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 4.51
		10	$ 3.45
		100	$ 2.67
		500	$ 2.26
		1000	$ 2.14

Description

General part information

PEC30 Series

Connector Header Through Hole, Right Angle 30 position 0.100" (2.54mm)
