1418N4SSS12
ActiveHammond Manufacturing

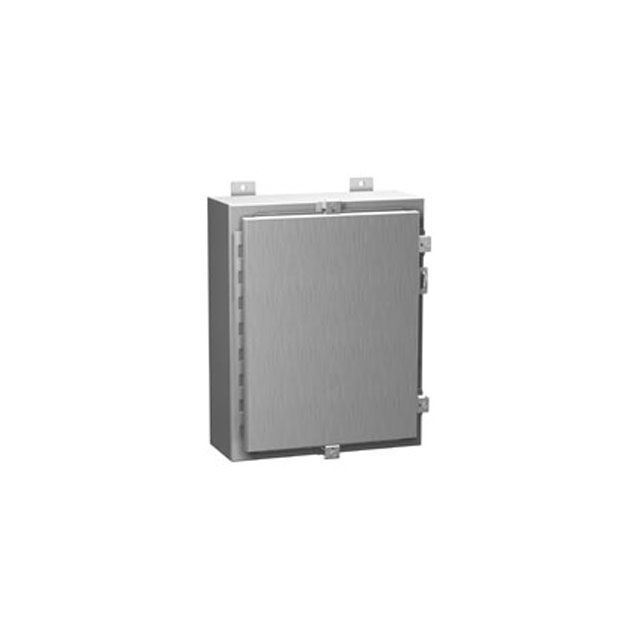

BOX S STL NATURAL 48"L X 36"W
Deep-Dive with AI
Search across all available documentation for this part.
1418N4SSS12
ActiveHammond Manufacturing
BOX S STL NATURAL 48"L X 36"W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1418N4SSS12 | 1418 Series |
|---|---|---|
| Accessory Type | - | Rails, Support Brackets |
| Area (L x W) | 1728 in² | 192 - 2592 in˛ |
| Area (L x W) | 1.115 m² | 1.115 - 9755 cm˛ |
| Area (L x W) | - | 600 - 864 in² |
| Area (L x W) | - | 3871 - 5574 cm² |
| Area (L x W) | - | 1260 in² |
| Area (L x W) | - | 8129 cm² |
| Area (L x W) | - | 8361 cm² |
| Color | Natural | Black, Gray, Natural |
| Container Type | Box | Box |
| Design | Hinged Door, Lid | Hinged Door, Lid |
| Features | Interior Panels, Mounting Flange | Interior Panels, Mounting Flange, Single Door, Single Access, Dual Access, Dual Door, Quarter Turn Latches |
| For Use With/Related Products | - | 1418 Series |
| Height | - | 152.4 - 609.6 mm |
| Height | - | 6 - 24 in |
| Material | - | Metal, Steel, Aluminum |
| Ratings | NEMA 12, UL-508, IP66, NEMA 13, NEMA 4, NEMA 4X, NEMA 3R | UL-508, NEMA 13, IP54, JIC EGP-1-1967, NEMA 12, 4, 12, NEMA 3R, 13, IP66, 4X, NEMA 4, NEMA 4X, UL 508 |
| Shipping Info | Drop shipped from the Manufacturer's Warehouse | Drop shipped from the Manufacturer's Warehouse |
| Size / Dimension | - | 4.28 in |
| Size / Dimension | - | 108.71 mm |
| Size / Dimension | - | 149.35 - 914.4 mm |
| Size / Dimension | - | 30 " |
| Size / Dimension | - | 24 " |
| Size / Dimension | - | 1524 mm |
| Size / Dimension [x] | 1219.2 mm | 406.4 - 2231.64 mm |
| Size / Dimension [x] | 48 " | 16 - 87.86 in |
| Size / Dimension [y] | 36 in | 5.88 - 36 in |
| Size / Dimension [y] | 914.4 mm | 508 - 914.4 mm |
| Thickness | 14 Gauge | 0.1 - 14 Gauge |
| Thickness | - | 2.54 mm |
| Type | - | Swing Frame |
| Ventilation | - | Non-Vented |
| Weight | 225 lbs | 14 - 950 lbs |
| Weight | 102.1 kg | 6.4 - 700 kg |
| Weight | - | 313 - 650 lbs |
| Weight | - | 142 - 294.8 kg |
| Weight | - | 317.5 kg |
1418 Series
SWING FRAME 87.9X33.7X4.3" BLK
...
| Part | Type | Color | Material | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | For Use With/Related Products | Ventilation | Shipping Info | Weight | Weight | Accessory Type | Ratings | Design | Thickness | Area (L x W) | Area (L x W) | Features | Height [z] | Height [z] | Container Type | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Thickness | Area (L x W) [custom] | Area (L x W) [custom] | Size / Dimension [x] | Weight [custom] | Weight [custom] | Area (L x W) [custom] | Area (L x W) [custom] | Area (L x W) | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Hammond Manufacturing 1418SFYY | Swing Frame | Black | Metal, Steel | 4.28 in | 108.71 mm | 33.72 in | 2231.64 mm | 856.49 mm | 87.86 in | 1418 Series | Non-Vented | Drop shipped from the Manufacturer's Warehouse | 87 lbs | 39.5 kg | |||||||||||||||||||||||
Hammond Manufacturing 1418XHHP | 1418 Series | Rails | |||||||||||||||||||||||||||||||||||
Hammond Manufacturing 1418K6 | Gray | Metal, Steel | 762 mm | 609.6 mm | Drop shipped from the Manufacturer's Warehouse | 76 lbs | 34.5 kg | IP54, JIC EGP-1-1967, NEMA 12, NEMA 13, UL-508 | Hinged Door, Lid | 14 Gauge | 720 in˛ | 4645 cm˛ | Interior Panels, Mounting Flange | 152.4 mm | 6 in | Box | 30 " | 24 " | |||||||||||||||||||
Hammond Manufacturing 1418N4SSM16 | Natural | 30 " | 914.4 mm | 762 mm | 36 " | Drop shipped from the Manufacturer's Warehouse | 149 lbs | 67.6 kg | 12, 13, 4, 4X, IP66, JIC EGP-1-1967, NEMA 3R, UL-508 | Hinged Door, Lid | 14 Gauge | 1080 in² | 6968 cm² | Interior Panels, Mounting Flange | 406.4 mm | 16 in | Box | ||||||||||||||||||||
Hammond Manufacturing 1418N4J8 | Gray | Metal, Steel | 24 " | 609.6 mm | 609.6 mm | 24 in | IP66, JIC EGP-1-1967, NEMA 12, NEMA 13, NEMA 3R, NEMA 4, UL-508 | Hinged Door, Lid | 14 Gauge | 576 in² | 3716 cm² | Interior Panels, Mounting Flange | 203.2 mm | 8 " | Box | ||||||||||||||||||||||
Hammond Manufacturing 1418N4S16S16 | Natural | 36 in | 1219.2 mm | 48 " | Drop shipped from the Manufacturer's Warehouse | 290 lbs | 131.5 kg | IP66, NEMA 12, NEMA 13, NEMA 3R, NEMA 4, NEMA 4X, UL-508 | Hinged Door, Lid | 14 Gauge | 1728 in² | 1.115 m² | Interior Panels, Mounting Flange | 406.4 mm | 16 in | Box | 914.4 mm | ||||||||||||||||||||
Hammond Manufacturing 1418CA8 | Gray | Metal, Steel | 12 " | 508 mm | 304.8 mm | 20 " | 35 lbs | 15.9 kg | IP54, JIC EGP-1-1967, NEMA 12, NEMA 13, UL-508 | Hinged Door, Lid | 14 Gauge | 240 in² | 1548 cm² | Interior Panels, Mounting Flange | 203.2 mm | 8 " | Box | ||||||||||||||||||||
Hammond Manufacturing 1418N4ALC6 | Natural | Aluminum, Metal | 16 in | 508 mm | 406.4 mm | 20 " | 16 lbs | 7.3 kg | IP66, JIC EGP-1-1967, NEMA 12, NEMA 13, NEMA 4, UL-508 | Hinged Door, Lid | 0.1 in | 320 in² | 2065 cm˛ | Interior Panels, Mounting Flange | 152.4 mm | 6 in | Box | 2.54 mm | |||||||||||||||||||
Hammond Manufacturing 1418K8 | Gray | Metal, Steel | 762 mm | 609.6 mm | Drop shipped from the Manufacturer's Warehouse | 82 lbs | 37.2 kg | IP54, JIC EGP-1-1967, NEMA 12, NEMA 13, UL-508 | Hinged Door, Lid | 14 Gauge | 720 in˛ | 4645 cm˛ | Interior Panels, Mounting Flange | 203.2 mm | 8 " | Box | 30 " | 24 " | |||||||||||||||||||
Hammond Manufacturing 1418THHP | 1418 Series | Rails |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Case | 1 | $ 3844.87 | |
Description
General part information
1418 Series
Box Metal, Stainless Steel Natural Hinged Door, Lid 48.000" L x 36.000" W (1219.20mm x 914.40mm) X 12.000" (304.80mm)
