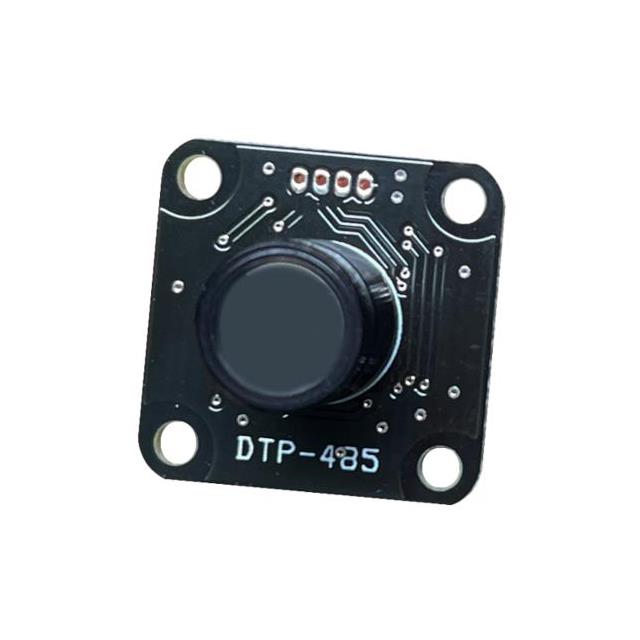

DTP-485-H08
ActiveDiwell Electronics
DIGITAL IR SENSOR -40~380 FOV7.1
DTP-485-H08
ActiveDiwell Electronics
DIGITAL IR SENSOR -40~380 FOV7.1
Description
General part information
DTP-485-H08
Temperature Sensor Infrared (IR) -40°C ~ 380°C 0.1°C
Technical Specifications
Parameters and characteristics for this part
| Specification | DTP-485-H08 |
|---|---|
| Accuracy - Highest (Lowest) | 2 °C |
| Mounting Type | Chassis Mount |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -20 °C |
| Output Type | RS485 |
| Package / Case | Module |
| Resolution | 0.1 °C |
| Sensing Temperature - Local (Max) | 380 °C |
| Sensing Temperature - Local (Min) | -40 °C |
| Sensor Type | Infrared (IR) |
| Test Condition | 77 °F |
| Voltage - Supply (Maximum) | 3.6 V |
| Voltage - Supply (Minimum) | 3.2 V |
