9595495402
ActiveFair-Rite Products Corp.

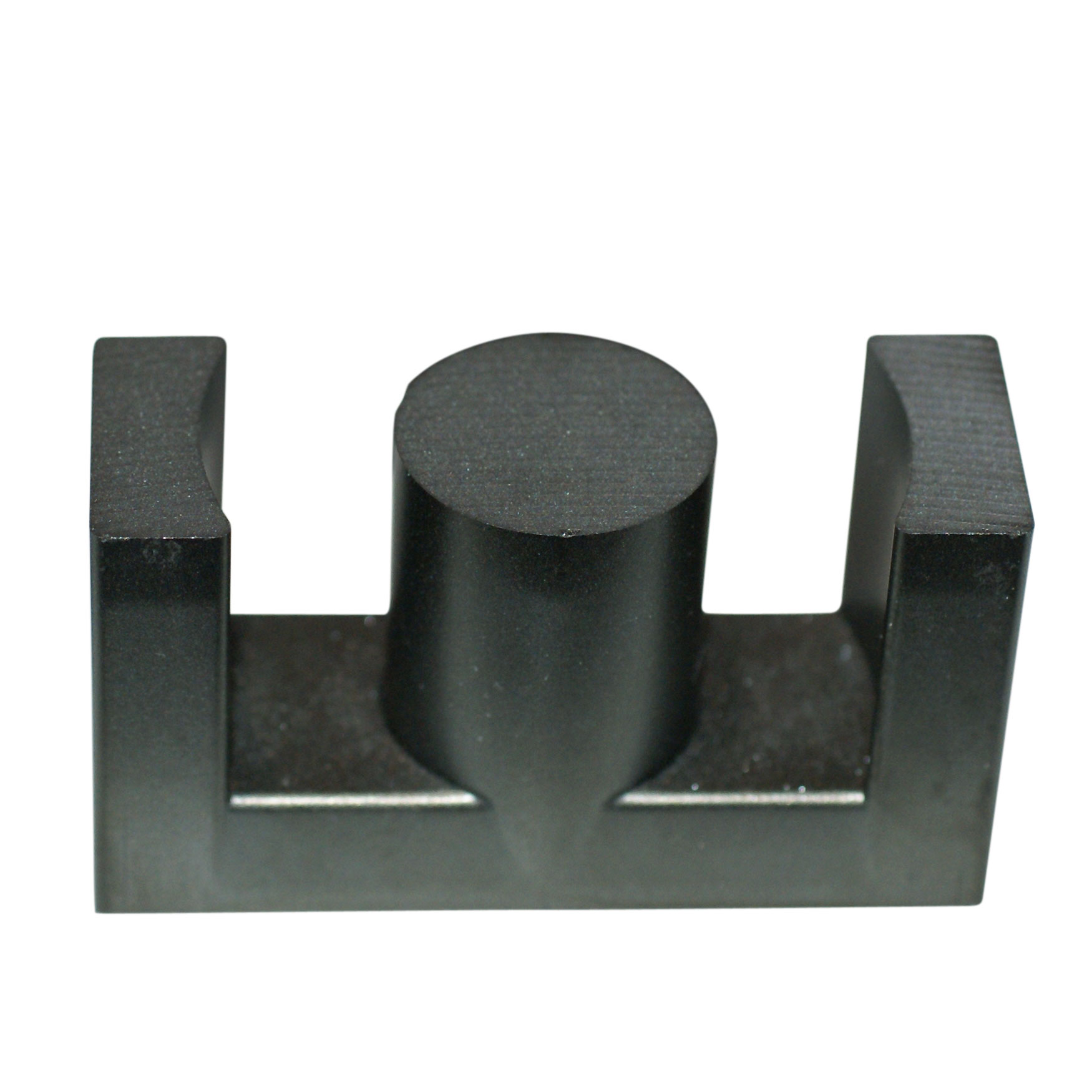

FERRITE CORE EER 95 SET
9595495402
ActiveFair-Rite Products Corp.
FERRITE CORE EER 95 SET
Description
General part information
9595495402
Uncoated 95 Ferrite Core EER Type Length Width Diameter 1.063" (27.00mm) Height
Technical Specifications
Parameters and characteristics for this part
| Specification | 9595495402 |
|---|---|
| Core Factor (ΣI/A) | 48 mm⁻² |
| Core Factor (ΣI/A) mm⁻¹ | 48 mm⁻¹ |
| Core Type | EER |
| Effective Area (Ae) | 245 mm² |
| Effective Length (le) | 118 mm |
| Effective Magnetic Volume (Ve) | 29020 mm³ |
| Finish | Uncoated |
| Gap | Ungapped |
| Height | 1.063 in |
| Initial Permeability (µi) | 3000 |
| Material | 95 |
| Minimum Core Cross Section (Amin) (mm²) | 232 mm² |
| Tolerance | 25 % |
