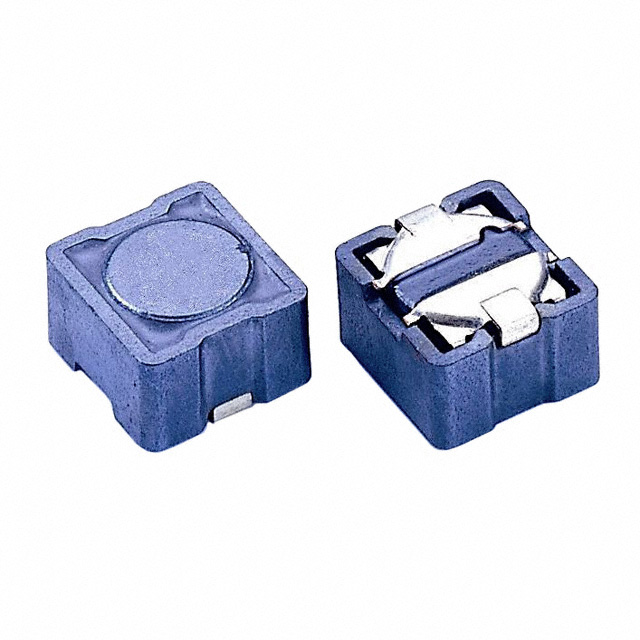

SCRH105-220
ActiveSignal Transformer
FIXED IND 22UH 2.1A 125 MOHM SMD
SCRH105-220
ActiveSignal Transformer
FIXED IND 22UH 2.1A 125 MOHM SMD
Description
General part information
SCRH105-220
22 µH Shielded Inductor 2.1 A 125mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | SCRH105-220 |
|---|---|
| Current - Saturation (Isat) | 2.8 A |
| Current Rating | 2.1 A |
| DC Resistance (DCR) (Max) | 125 mOhm |
| Height - Seated (Max) | 0.236 in |
| Inductance | 22 µH |
| Inductance Frequency - Test | 100 kHz |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Shielded |
| Size / Dimension Length | 0.398 in |
| Size / Dimension Width | 0.362 in |
| Tolerance | 20 % |
