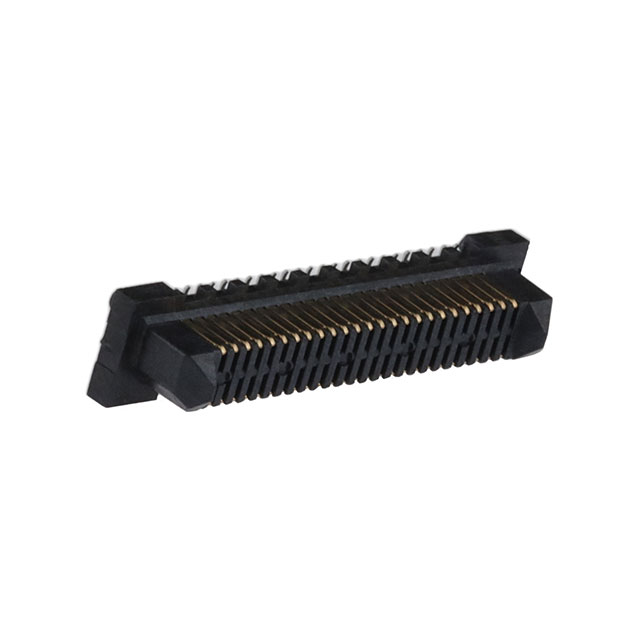

ERM8-025-02.0-S-DV-P-TR

Active

Samtec Inc.

CONN HDR 50POS SMD GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ERM8-025-02.0-S-DV-P-TR

Active

Samtec Inc.

CONN HDR 50POS SMD GOLD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ERM8-025-02.0-S-DV-P-TR

Connector Type	Header, Center Strip Contacts
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Features	Pick and Place, Board Guide
Height Above Board	5.97 mm
Height Above Board	0.235 in
Mated Stacking Heights	7 mm, 12 mm, 9 mm
Mounting Type	Surface Mount
Number of Positions	50
Number of Rows	2
Pitch [x]	0.8 mm
Pitch [x]	0.031 in

ERM8-025 Series

Part	Height Above Board	Height Above Board	Contact Finish Thickness	Contact Finish Thickness	Pitch [x]	Pitch [x]	Connector Type	Number of Positions	Contact Finish	Number of Rows	Features	Mounting Type	Mated Stacking Heights
Samtec Inc. ERM8-025-03-S-D-RA-L-K-TR	6.25 mm	0.246 in	0.76 Ám	30 Áin	0.8 mm	0.031 in	Header Center Strip Contacts	50	Gold	2	Board Guide Latches Mounting Flange Pick and Place	Surface Mount Right Angle
Samtec Inc. ERM8-025-01-L-D-EM2-TR			0.25 Ám	10 Áin	0.8 mm	0.031 in	Header Center Strip Contacts	50	Gold	2		Board Edge Straddle Mount
Samtec Inc. ERM8-025-01-L-D-RA-L-TR	6.25 mm	0.246 in	0.25 Ám	10 Áin	0.8 mm	0.031 in	Header Center Strip Contacts	50	Gold	2	Board Guide Latches Mounting Flange	Surface Mount Right Angle
Samtec Inc. ERM8-025-02.0-S-DV-P-TR	5.97 mm	0.235 in	0.76 Ám	30 Áin	0.8 mm	0.031 in	Header Center Strip Contacts	50	Gold	2	Board Guide Pick and Place	Surface Mount	7 mm 9 mm 12 mm
Samtec Inc. ERM8-025-05.0-S-DV-L-TR	8.91 mm	0.351 in	0.76 Ám	30 Áin	0.8 mm	0.031 in	Header Center Strip Contacts	50	Gold	2	Board Guide Latches	Surface Mount	10 mm 12 mm 15 mm
Samtec Inc. ERM8-025-01-S-D-RA-DS-TR	6.25 mm	0.246 in	0.76 Ám	30 Áin	0.8 mm	0.031 in	Differential Pair Array Male	50	Gold	2	Board Guide Mounting Flange	Surface Mount Right Angle
Samtec Inc. ERM8-025-05.0-L-DV-DSS-K-TR	8.91 mm	0.351 in	0.25 Ám	10 Áin	0.8 mm	0.031 in	Differential Pair Array Male	50	Gold	2	Board Guide Mating Guide Pick and Place	Surface Mount	10 mm 12 mm 15 mm
Samtec Inc. ERM8-025-01-L-D-RA-DS-TR	6.25 mm	0.246 in	0.25 Ám	10 Áin	0.8 mm	0.031 in	Differential Pair Array Male	50	Gold	2	Board Guide Mounting Flange	Surface Mount Right Angle
Samtec Inc. ERM8-025-05.0-L-DV-DS-K-TR	8.91 mm	0.351 in	0.25 Ám	10 Áin	0.8 mm	0.031 in	Differential Pair Array Male	50	Gold	2	Board Guide Pick and Place	Surface Mount	10 mm 12 mm 15 mm
Samtec Inc. ERM8-025-05.0-L-DV-DS-TR	8.91 mm	0.351 in	0.25 Ám	10 Áin	0.8 mm	0.031 in	Differential Pair Array Male	50	Gold	2	Board Guide	Surface Mount	10 mm 12 mm 15 mm
