EXN-23358-BKP
ActiveBUD INDUSTRIES

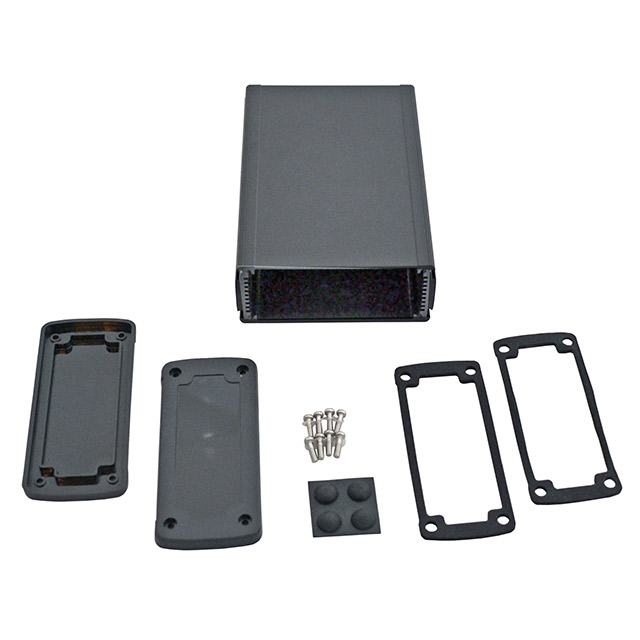

BOX ALUM BLACK 6.65"L X 4.53"W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EXN-23358-BKP
ActiveBUD INDUSTRIES
BOX ALUM BLACK 6.65"L X 4.53"W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | EXN-23358-BKP | EXN-23358 Series |
|---|---|---|
| Area (L x W) | 194 cm˛ | 194 cm˛ |
| Area (L x W) | 30 in˛ | 30 in˛ |
| Color | Black | Black, Gold |
| Container Type | Box | Box |
| Design | End Panel(s) | End Panel(s) |
| Features | Card Guides, Sealing Gaskets | Card Guides, Sealing Gaskets |
| Height [z] | 51.6 mm | 51.6 mm |
| Height [z] | 2.031 in | 2.031 in |
| Material | Metal, Polycarbonate Panels, Aluminum with Plastic | Metal, Aluminum, Polycarbonate Panels, Aluminum with Plastic |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Ratings | IP66 | IP66 |
| Size / Dimension [x] | 169 mm | 169 mm |
| Size / Dimension [x] | 6.654 " | 6.654 " |
| Size / Dimension [y] | 115.1 mm | 115.1 mm |
| Size / Dimension [y] | 4.531 in | 4.531 in |
| Thickness | 0.091 in | 0.091 in |
| Thickness | 2.3 mm | 2.3 mm |
| Weight | 0.89 lb | 0.89 - 1 lbs |
| Weight | 403.7 g | 403.7 - 453.59 g |
EXN-23358 Series
METAL ENCLOSURE, EXTRUDED, SMALL, EXTRUDED ALUMINUM, 51.6 MM, 169 MM, 115.1 MM, IP66
| Part | Weight | Weight | Color | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Thickness | Thickness | Container Type | Features | Material | Height [z] | Height [z] | Ratings | Design | Area (L x W) | Area (L x W) | Material Flammability Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
BUD INDUSTRIES EXN-23358-GD | 453.59 g | 1 lbs | Black, Gold | 169 mm | 115.1 mm | 4.531 in | 6.654 " | 0.091 in | 2.3 mm | Box | Card Guides, Sealing Gaskets | Aluminum, Metal | 51.6 mm | 2.031 in | IP66 | End Panel(s) | 194 cm˛ | 30 in˛ | |
BUD INDUSTRIES EXN-23358-BK | 453.59 g | 1 lbs | Black | 169 mm | 115.1 mm | 4.531 in | 6.654 " | 0.091 in | 2.3 mm | Box | Card Guides, Sealing Gaskets | Aluminum, Metal | 51.6 mm | 2.031 in | IP66 | End Panel(s) | 194 cm˛ | 30 in˛ | |
BUD INDUSTRIES EXN-23358-BKP | 403.7 g | 0.89 lb | Black | 169 mm | 115.1 mm | 4.531 in | 6.654 " | 0.091 in | 2.3 mm | Box | Card Guides, Sealing Gaskets | Aluminum with Plastic, Metal, Polycarbonate Panels | 51.6 mm | 2.031 in | IP66 | End Panel(s) | 194 cm˛ | 30 in˛ | UL94 V-0 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 29.60 | |
| 10 | $ 24.65 | |||
| 50 | $ 22.20 | |||
| 100 | $ 20.88 | |||
Description
General part information
EXN-23358 Series
Box Metal, Aluminum with Plastic, Polycarbonate Panels Black End Panel(s) 6.654" L x 4.531" W (169.00mm x 115.10mm) X 2.031" (51.60mm)
