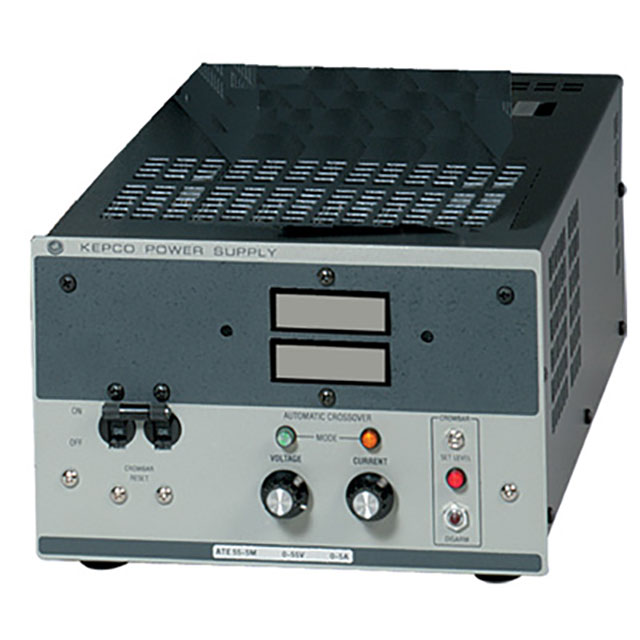

ATE 325-0.8DM
ActiveKepco and Kepco Power
POWER SUPPLY RACK MNT 250W LCD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ATE 325-0.8DM
ActiveKepco and Kepco Power
POWER SUPPLY RACK MNT 250W LCD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ATE 325-0.8DM |
|---|---|
| Current - Output [Max] | 0.8 A |
| Current - Output [Min] | 0 A |
| Display Type | LCD |
| Features | Programmable |
| Number of Characters | 3.5 |
| Number of Characters | 2 |
| Power (Watts) | 250 W |
| Ripple | 30 mV, 10 mV |
| Size / Dimension [x] | 435.4 mm |
| Size / Dimension [x] | 17.142 in |
| Size / Dimension [y] | 211.9 mm |
| Size / Dimension [y] | 8.343 " |
| Size / Dimension [z] | 5.22 in |
| Size / Dimension [z] | 132.6 mm |
| Type | Rack Mount (AC to DC) |
| Voltage - Output [Max] | 325 VDC |
| Voltage - Output [Min] | 0 VDC |
| Voltage - Supply [Max] | 250 VAC |
| Voltage - Supply [Min] | 95 VAC |
ATE 325 Series
POWER SUPPLY RACK MNT 250W LCD
| Part | Voltage - Supply [Min] | Voltage - Supply [Max] | Number of Characters | Number of Characters | Current - Output [Min] | Current - Output [Max] | Features | Type | Display Type | Ripple | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Power (Watts) | Voltage - Output [Min] | Voltage - Output [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Kepco and Kepco Power ATE 325-0.8DM | 95 VAC | 250 VAC | 3.5 | 2 | 0 A | 0.8 A | Programmable | Rack Mount (AC to DC) | LCD | 10 mV, 30 mV | 211.9 mm | 435.4 mm | 5.22 in | 132.6 mm | 17.142 in | 8.343 " | 250 W | 0 VDC | 325 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 4939.25 | |
Description
General part information
ATE 325 Series
0 ~ 325VDC Output Rack Mount (AC to DC) Power Supply LCD 0 ~ 0.8A Output 250W Features Programmable
