TG5032CGN 12.8000M-CBGHNAB

Active

EPSON

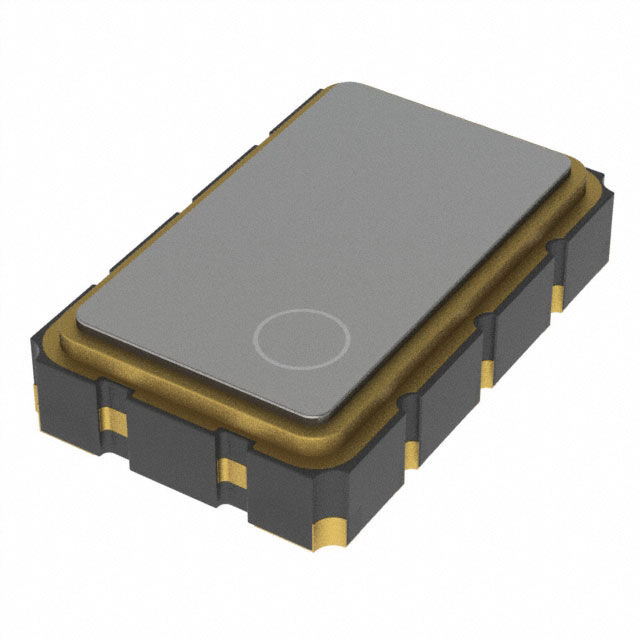

TG5032CGN 12.8000M-CBGHNAB: TCXO

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TG5032CGN 12.8000M-CBGHNAB

Active

EPSON

TG5032CGN 12.8000M-CBGHNAB: TCXO

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 18.05

Description

General part information

TG5032CGN Series

12.8 MHz TCXO CMOS Oscillator 3.3V Enable/Disable 10-SMD, No Lead

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	TG5032CGN 12.8000M-CBGHNAB	TG5032CGN Series

Base Resonator	Crystal	Crystal
Current - Supply (Max) [Max]	5 mA	5 - 6 mA
Frequency	12.8 MHz	10 - 40 MHz
Frequency Stability	280 ppb	100 - 280 ppb
Function	Enable/Disable	Enable/Disable
Height - Seated (Max) [Max] [z]	1.65 mm	1.65 mm
Height - Seated (Max) [Max] [z]	0.065 "	0.065 "
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Output	CMOS	CMOS
Package / Case	10-SMD, No Lead	10-SMD, No Lead
Size / Dimension [x]	0.197 in	0.197 in
Size / Dimension [x]	5 mm	5 mm
Size / Dimension [y]	0.126 "	0.126 "
Size / Dimension [y]	3.2 mm	3.2 mm
Supplier Device Package	10-SMD (5x3.2)	10-SMD (5x3.2)
Type	TCXO	TCXO, VCTCXO
Voltage - Supply	3.3 V	3.3 V

TG5032CGN Series

TG5032CGN 10.0000M-CAGHGA3: TCXO

Part	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Base Resonator	Frequency	Operating Temperature [Max]	Operating Temperature [Min]	Output	Mounting Type	Frequency Stability	Type	Voltage - Supply	Function	Package / Case	Current - Supply (Max) [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]
EPSON TG5032CGN 10.0000M-CAGHGA3	1.65 mm	0.065 "	Crystal	10 MHz	85 °C	-40 °C	CMOS	Surface Mount	100 ppb	TCXO	3.3 V	Enable/Disable	10-SMD, No Lead	5 mA	0.197 in	0.126 "	3.2 mm	5 mm
EPSON TG5032CGN 20.0000M-CBGHNAB	1.65 mm	0.065 "	Crystal	20 MHz	85 °C	-40 °C	CMOS	Surface Mount	280 ppb	TCXO	3.3 V	Enable/Disable	10-SMD, No Lead	5 mA	0.197 in	0.126 "	3.2 mm	5 mm
EPSON TG5032CGN 10.0000M-CAGHNAB	1.65 mm	0.065 "	Crystal	10 MHz	85 °C	-40 °C	CMOS	Surface Mount	100 ppb	TCXO	3.3 V	Enable/Disable	10-SMD, No Lead	5 mA	0.197 in	0.126 "	3.2 mm	5 mm
EPSON TG5032CGN 30.7200M-CAGHNAB	1.65 mm	0.065 "	Crystal	30.72 MHz	85 °C	-40 °C	CMOS	Surface Mount	100 ppb	TCXO	3.3 V	Enable/Disable	10-SMD, No Lead	6 mA	0.197 in	0.126 "	3.2 mm	5 mm
EPSON TG5032CGN 25.0000M-CBGHNAB	1.65 mm	0.065 "	Crystal	25 MHz	85 °C	-40 °C	CMOS	Surface Mount	280 ppb	TCXO	3.3 V	Enable/Disable	10-SMD, No Lead	5 mA	0.197 in	0.126 "	3.2 mm	5 mm
EPSON TG5032CGN 25.0000M-CBGHNA3	1.65 mm	0.065 "	Crystal	25 MHz	85 °C	-40 °C	CMOS	Surface Mount	280 ppb	TCXO	3.3 V	Enable/Disable	10-SMD, No Lead	5 mA	0.197 in	0.126 "	3.2 mm	5 mm
EPSON TG5032CGN 25.0000M-CAGHNA3	1.65 mm	0.065 "	Crystal	25 MHz	85 °C	-40 °C	CMOS	Surface Mount	100 ppb	TCXO	3.3 V	Enable/Disable	10-SMD, No Lead	5 mA	0.197 in	0.126 "	3.2 mm	5 mm
EPSON TG5032CGN 40.0000M-CAGHNA0	1.65 mm	0.065 "	Crystal	40 MHz	85 °C	-40 °C	CMOS	Surface Mount	100 ppb	TCXO	3.3 V	Enable/Disable	10-SMD, No Lead	6 mA	0.197 in	0.126 "	3.2 mm	5 mm
EPSON TG5032CGN 40.0000M-CAGHNAB	1.65 mm	0.065 "	Crystal	40 MHz	85 °C	-40 °C	CMOS	Surface Mount	100 ppb	TCXO	3.3 V	Enable/Disable	10-SMD, No Lead	6 mA	0.197 in	0.126 "	3.2 mm	5 mm
EPSON TG5032CGN 25.0000M-CAGHGA3	1.65 mm	0.065 "	Crystal	25 MHz	85 °C	-40 °C	CMOS	Surface Mount	100 ppb	TCXO	3.3 V	Enable/Disable	10-SMD, No Lead	5 mA	0.197 in	0.126 "	3.2 mm	5 mm
