3274192
ObsoletePhoenix Contact

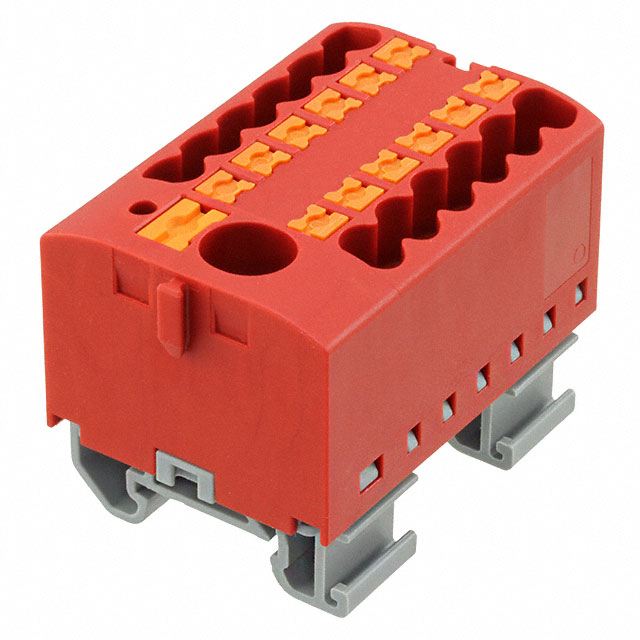

DISTRIBUTION BLOCK RED
3274192
ObsoletePhoenix Contact
DISTRIBUTION BLOCK RED
Description
General part information
3274192
13 Position Terminal Block Red Middle 40.6mm
Technical Specifications
Parameters and characteristics for this part
| Specification | 3274192 |
|---|---|
| Current - IEC | 24 A |
| Features | Block of 6 |
| Height (Max) | 1.299 in |
| Housing Color | Red |
| Length | 1.11 in |
| Material - Insulation | Polyamide, PA, Nylon |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | DIN Rail |
| Number of Levels | 1 |
| Number of Positions | 13 |
| Stripping Length | 12 mm |
| Terminal Width | 40.6 mm |
| Termination Style | Push In, Spring |
| Type | Middle |
| Voltage - IEC | 500 V |
