RH2B-UDC12V

Active

IDEC Corporation

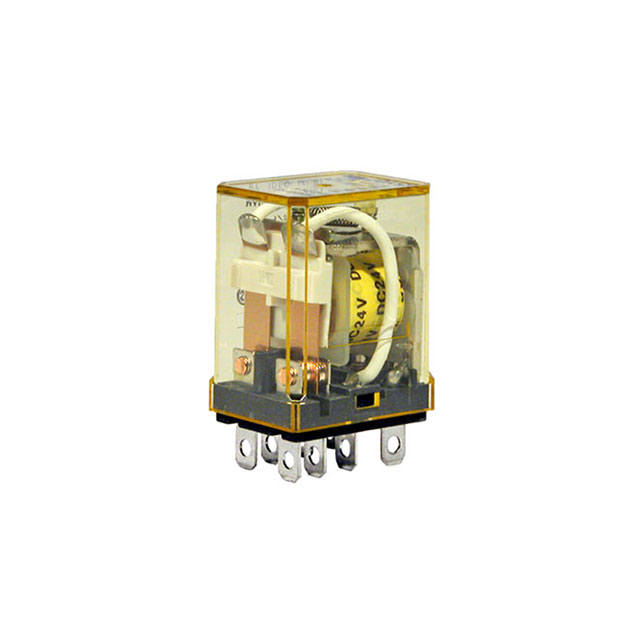

POWER RELAY, DPDT, 12 VDC, 10 A, RH SERIES, SOCKET, NON LATCHING

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Product Change Notice EN

RH2B-UDC12V

Active

IDEC Corporation

POWER RELAY, DPDT, 12 VDC, 10 A, RH SERIES, SOCKET, NON LATCHING

Deep-Dive with AI

DocumentsDatasheet Product Change Notice EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	RH2B-UDC12V	RH2B-U Series

Approval Agency	CSA, TUV, cURus, CE	CSA, TUV, cURus, CE
Coil Current	75 mA	4 - 645.2 mA
Coil Resistance	40 Ohms	1.138 - 2560 Ohms
Coil Type	Non Latching	Non Latching
Coil Voltage	12 VDC	6 - 240 VDC
Coil Voltage	-	100 - 220 VAC
Coil Voltage	-	110 - 240 VAC
Contact Form	DPDT (2 Form C)	DPDT (2 Form C)
Contact Material	Silver Cadmium Oxide (AgCdO)	Silver Cadmium Oxide (AgCdO)
Contact Rating (Current)	10 A	10 A
Features	-	Test Button, Lighted Indicator, Diode
Load - Max Switching	300 W, 2400 VA	280 - 2400 W
Mounting Type	Socketable	Socketable, Chassis Mount
Must Operate Voltage	9.6 VDC	4.8 - 192 VDC
Must Release Voltage	1.2 VDC	0.6 - 72 VDC
Operate Time	20 ms	20 ms
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-25 °C	-25 °C
Relay Type	General Purpose	General Purpose
Release Time	20 ms	20 - 25 ms
Switching Voltage	30 VDC, 240 VAC	28 - 240 VDC
Termination Style	Plug In, Quick Connect - 0.187" (4.7mm)	Plug In, Quick Connect - 0.187" (4.7mm), Quick Connect - 0.187" (4.7mm)

RH2B-U Series

POWER RELAY, DPDT, 12 VDC, 10 A, RH SERIES, SOCKET, NON LATCHING

Part	Contact Form	Release Time	Load - Max Switching	Features	Contact Material	Termination Style	Must Release Voltage	Coil Current	Switching Voltage	Coil Resistance	Contact Rating (Current)	Operating Temperature [Max]	Operating Temperature [Min]	Coil Voltage	Relay Type	Must Operate Voltage	Mounting Type	Approval Agency	Coil Type	Operate Time
IDEC Corporation RH2B-ULCDC12V	DPDT (2 Form C)	20 ms	300 W, 2400 VA	Lighted Indicator, Test Button	Silver Cadmium Oxide (AgCdO)	Plug In, Quick Connect - 0.187" (4.7mm)	1.2 VDC	75 mA	30 VDC, 240 VAC	40 Ohms	10 A	70 °C	-25 °C	12 VDC	General Purpose	9.6 VDC	Socketable	CE, CSA, cURus, TUV	Non Latching	20 ms
IDEC Corporation RH2B-UAC48V	DPDT (2 Form C)	20 ms	300 W, 2400 VA		Silver Cadmium Oxide (AgCdO)	Plug In, Quick Connect - 0.187" (4.7mm)	14.4 VAC		30 VDC, 240 VAC		10 A	70 °C	-25 °C	48 VAC/DC	General Purpose	38.4 VAC	Socketable	CE, CSA, cURus, TUV	Non Latching	20 ms
IDEC Corporation RH2B-UDC48V	DPDT (2 Form C)	25 ms	280 W, 1200 VA		Silver Cadmium Oxide (AgCdO)	Plug In, Quick Connect - 0.187" (4.7mm)	4.8 VDC	18.5 mA	28 VDC, 120 VAC	2.6 kOhms	10 A	70 °C	-25 °C	48 VDC	General Purpose	38.4 VDC	Socketable	CE, CSA, cURus, TUV	Non Latching	20 ms
IDEC Corporation RH2B-UTDC6V	DPDT (2 Form C)	20 ms	300 W, 2400 VA		Silver Cadmium Oxide (AgCdO)	Quick Connect - 0.187" (4.7mm)	0.6 VDC	150 mA	30 VDC, 240 VAC	40 Ohms	10 A	70 °C	-25 °C		General Purpose	4.8 VDC	Chassis Mount	CE, CSA, cURus, TUV	Non Latching	20 ms
IDEC Corporation RH2B-UD-DC48V	DPDT (2 Form C)	20 ms	300 W, 2400 VA	Diode	Silver Cadmium Oxide (AgCdO)	Plug In, Quick Connect - 0.187" (4.7mm)	4.8 VDC	18.8 mA	30 VDC, 240 VAC	2560 Ohms	10 A	70 °C	-25 °C	48 VDC	General Purpose	38.4 VDC	Socketable	CE, CSA, cURus, TUV	Non Latching	20 ms
IDEC Corporation RH2B-UDC12V	DPDT (2 Form C)	20 ms	300 W, 2400 VA		Silver Cadmium Oxide (AgCdO)	Plug In, Quick Connect - 0.187" (4.7mm)	1.2 VDC	75 mA	30 VDC, 240 VAC	40 Ohms	10 A	70 °C	-25 °C	12 VDC	General Purpose	9.6 VDC	Socketable	CE, CSA, cURus, TUV	Non Latching	20 ms
IDEC Corporation RH2B-UCDC125V	DPDT (2 Form C)	20 ms	300 W, 2400 VA	Test Button	Silver Cadmium Oxide (AgCdO)	Plug In, Quick Connect - 0.187" (4.7mm)	12.5 VDC	7.2 mA	30 VDC, 240 VAC	17.361 kOhms	10 A	70 °C	-25 °C	125 VDC	General Purpose	100 VDC	Socketable	CE, CSA, cURus, TUV	Non Latching	20 ms
IDEC Corporation RH2B-UTAC110-120V	DPDT (2 Form C)	20 ms	300 W, 2400 VA		Silver Cadmium Oxide (AgCdO)	Quick Connect - 0.187" (4.7mm)	36 VAC	9.2 mA	30 VDC, 240 VAC	13.1 kOhms	10 A	70 °C	-25 °C	120 VAC	General Purpose	96 VAC	Chassis Mount	CE, CSA, cURus, TUV	Non Latching	20 ms
IDEC Corporation RH2B-UD-DC12V	DPDT (2 Form C)	20 ms	300 W, 2400 VA	Diode	Silver Cadmium Oxide (AgCdO)	Plug In, Quick Connect - 0.187" (4.7mm)	1.2 VDC	75 mA	30 VDC, 240 VAC	160 Ohms	10 A	70 °C	-25 °C	12 VDC	General Purpose	9.6 VDC	Socketable	CE, CSA, cURus, TUV	Non Latching	20 ms
IDEC Corporation RH2B-UTAC220-240V	DPDT (2 Form C)	20 ms	300 W, 2400 VA		Silver Cadmium Oxide (AgCdO)	Quick Connect - 0.187" (4.7mm)	72 VAC/DC	4.6 mA	30 VDC, 240 VAC	18.8 kOhms	10 A	70 °C	-25 °C	240 VAC	General Purpose	192 VAC	Chassis Mount	CE, CSA, cURus, TUV	Non Latching	20 ms
