0657P3000-12
ObsoleteBel Fuse Inc.
FUSE GLASS 3A 350VAC 140VDC 2AG
0657P3000-12
ObsoleteBel Fuse Inc.
FUSE GLASS 3A 350VAC 140VDC 2AG
Description
General part information
0657P3000-12

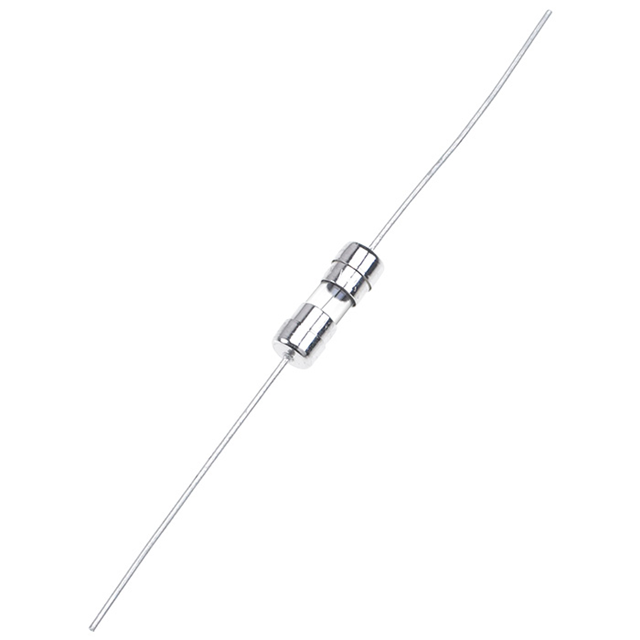

3 A 350 V AC 140 V DC Fuse Cartridge, Glass Through Hole 2AG, 5mm x 15mm (Axial)
Technical Specifications
Parameters and characteristics for this part
| Specification | 0657P3000-12 |
|---|---|
| Approval Agency | cURus |
| Breaking Capacity (AC) | 100 A |
| Breaking Capacity (DC) | 150 A |
| Current Rating | 3 A |
| DC Cold Resistance | 0.027 Ohms |
| Fuse Type | Cartridge, Glass |
| Melting I²t | 9 |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 5mm x 15mm (Axial), 2AG |
| Package Features | Axial |
| Package Length | 5 mm |
| Package Name | 2AG |
| Package Width | 15 mm |
| Response Time | Fast Blow |
| Size / Dimension Diameter | 0.197 in |
| Size / Dimension Length | 0.591 in |
| Voltage Rating - AC | 350 VAC |
| Voltage Rating - DC | 140 V |
