HS2P5F20-BPE
ActiveSwitchcraft Inc.

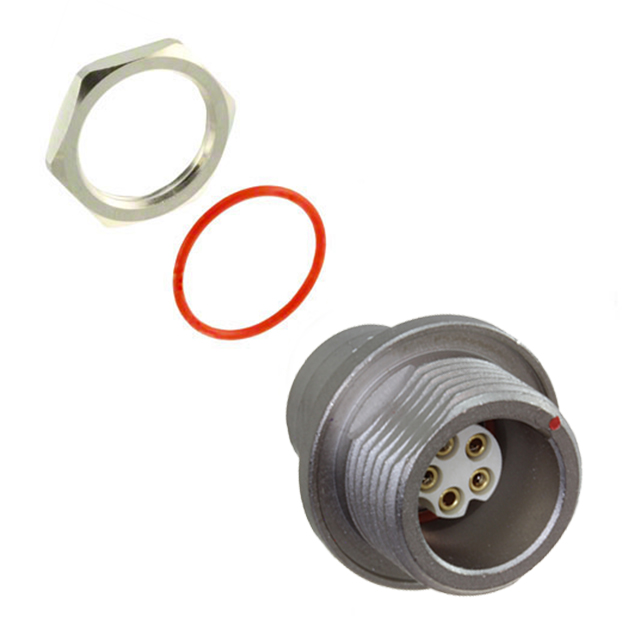

CONN RCPT FMALE 5POS GOLD SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
HS2P5F20-BPE
ActiveSwitchcraft Inc.
CONN RCPT FMALE 5POS GOLD SOLDER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | HS2P5F20-BPE | HS2P5F Series |
|---|---|---|
| Applications | Audio, Testing Equipment & Measurement, Agriculture, Medical, General | Audio, Testing Equipment & Measurement, Agriculture, Medical, General |
| Color | Silver | Silver |
| Connector Type | Receptacle, Female Sockets | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Copper Alloy | Copper Alloy |
| Fastening Type | Push-Pull | Push-Pull |
| Ingress Protection | IP68, IP66, IP67 | IP68, IP66, IP67 |
| Insert Material | Liquid Crystal Polymer (LCP) | Liquid Crystal Polymer (LCP) |
| Material Flammability Rating | - | UL94 HF-1 |
| Mounting Feature | Bulkhead - Front Side Nut | Bulkhead - Front Side Nut, Bulkhead - Rear Side Nut |
| Mounting Type | Through Hole, Panel Mount | Through Hole, Panel Mount |
| Operating Temperature [Max] | 135 °C | 135 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Orientation | Keyed | Keyed |
| Primary Material | Metal | Metal |
| Shell Finish | Electroless Nickel | Electroless Nickel |
| Shell Material | Copper Alloy | Copper Alloy |
| Shielding | Shielded | Shielded |
| Termination | Solder | Solder, Crimp, Solder Cup |
| Voltage Rating | 125 VAC | 125 VAC |
HS2P5F Series
CONN RCPT FMALE 5POS GOLD SOLDER
| Part | Shell Material | Insert Material | Voltage Rating | Ingress Protection | Fastening Type | Mounting Type | Shell Finish | Operating Temperature [Max] | Operating Temperature [Min] | Contact Material | Shielding | Contact Finish - Mating | Connector Type | Applications | Orientation | Color | Primary Material | Termination | Mounting Feature | Material Flammability Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Switchcraft Inc. HS2P5F20-BP | Copper Alloy | Liquid Crystal Polymer (LCP) | 125 VAC | IP66, IP67, IP68 | Push-Pull | Panel Mount, Through Hole | Electroless Nickel | 135 °C | -40 °C | Copper Alloy | Shielded | Gold | Receptacle, Female Sockets | Agriculture, Audio, General, Medical, Testing Equipment & Measurement | Keyed | Silver | Metal | Solder | Bulkhead - Front Side Nut | |
Switchcraft Inc. HS2P5F20 | Copper Alloy | Liquid Crystal Polymer (LCP) | 125 VAC | IP66, IP67, IP68 | Push-Pull | Electroless Nickel | 135 °C | -40 °C | Copper Alloy | Shielded | Gold | Receptacle, Female Sockets | Agriculture, Audio, General, Medical, Testing Equipment & Measurement | Keyed | Silver | Metal | Crimp, Solder Cup | Bulkhead - Rear Side Nut | UL94 HF-1 | |
Switchcraft Inc. HS2P5F20-BPE | Copper Alloy | Liquid Crystal Polymer (LCP) | 125 VAC | IP66, IP67, IP68 | Push-Pull | Panel Mount, Through Hole | Electroless Nickel | 135 °C | -40 °C | Copper Alloy | Shielded | Gold | Receptacle, Female Sockets | Agriculture, Audio, General, Medical, Testing Equipment & Measurement | Keyed | Silver | Metal | Solder | Bulkhead - Front Side Nut |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 29.89 | |
| 10 | $ 23.07 | |||
Description
General part information
HS2P5F Series
5 Position Circular Connector Receptacle, Female Sockets Solder
