CPL2508T220M
ObsoleteTDK Corporation
FIXED IND 22UH 180MA 3.12OHM SMD
CPL2508T220M
ObsoleteTDK Corporation
FIXED IND 22UH 180MA 3.12OHM SMD
Description
General part information
CPL2508T220M

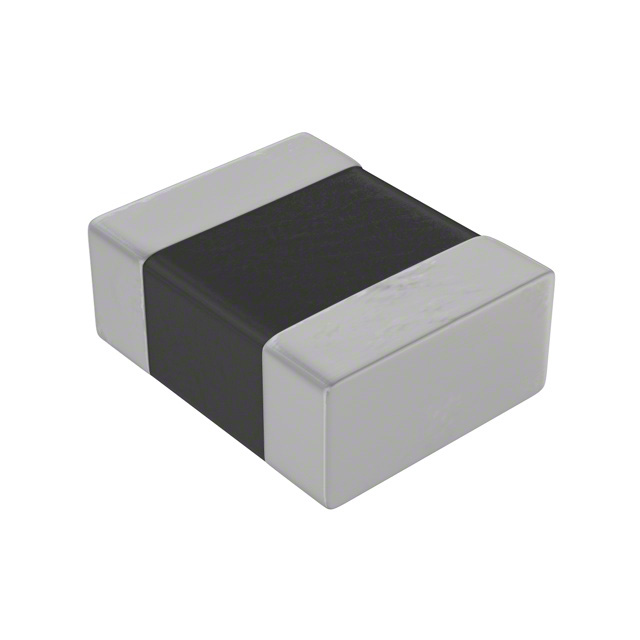

22 µH Shielded Drum Core, Wirewound Inductor 180 mA 3.12Ohm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | CPL2508T220M |
|---|---|
| Current - Saturation (Isat) | 0.18 mA |
| Current Rating | 0.18 A |
| DC Resistance (DCR) (Max) | 3.12 Ohm |
| Height - Seated (Max) | 0.031 in |
| Inductance | 22 µH |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Shielded |
| Size / Dimension Length | 0.098 in |
| Size / Dimension Width | 0.059 in |
| Tolerance | 20 % |
| Type | Drum Core, Wirewound |
