3213963

Active

Phoenix Contact

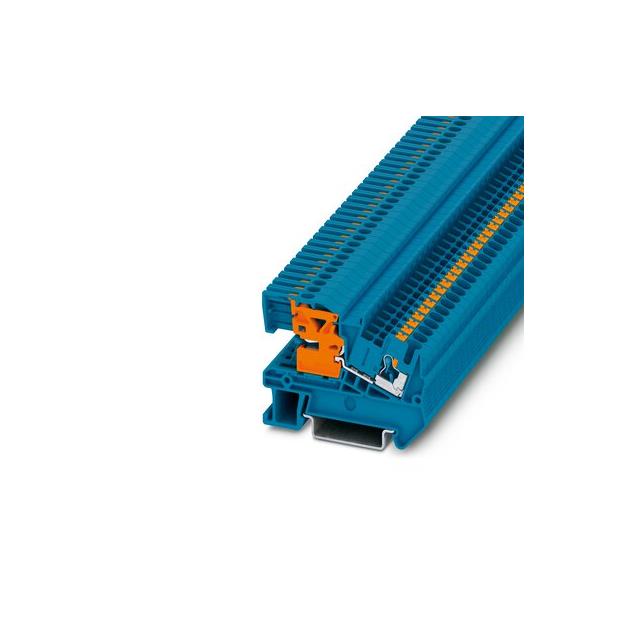

TERM BLK BUS BAR 2POS 5.2MM BLUE

Search across all available documentation for this part.

Active

Phoenix Contact

TERM BLK BUS BAR 2POS 5.2MM BLUE

Technical Specifications

Parameters and characteristics for this part

Specification	3213963

Current - IEC	24 A
Current - UL	20 A
Height (Max) [Max]	2.118 in
Height (Max) [Max]	53.8 mm
Housing Color	Blue
Length	59 mm
Length	2.323 in
Material - Insulation	Nylon, Polyamide (PA)
Material Flammability Rating	UL94 V-0
Mounting Type	DIN Rail
Number of Levels	1
Number of Positions	2
Stripping Length	10 mm
Terminal - Width [y]	5.2 mm
Termination Style	Special Clamp, Push-In Spring
Type	Bus Bar - Side
Voltage - IEC	250 V
Wire Gauge or Range - AWG [Max]	26 AWG
Wire Gauge or Range - AWG [Min]	12 AWG
Wire Gauge or Range - mm² [Max]	4 mm²
Wire Gauge or Range - mm² [Min]	0.14 mm²

DIN Rail Terminal Blocks PTN 2,5

Part	Material - Insulation	Height (Max) [Max]	Height (Max) [Max]	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Current - UL	Stripping Length	Termination Style	Mounting Type	Length	Length	Voltage - IEC	Terminal - Width [y]	Type	Number of Levels	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Current - IEC	Number of Positions	Material Flammability Rating	Housing Color
Phoenix Contact 3213963	Nylon, Polyamide (PA)	2.118 in	53.8 mm	0.14 mm²	4 mm²	20 A	10 mm	Push-In Spring, Special Clamp	DIN Rail	59 mm	2.323 in	250 V	5.2 mm	Bus Bar - Side	1	12 AWG	26 AWG	24 A	2	UL94 V-0	Blue

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

DIN Rail Terminal Blocks PTN 2,5
