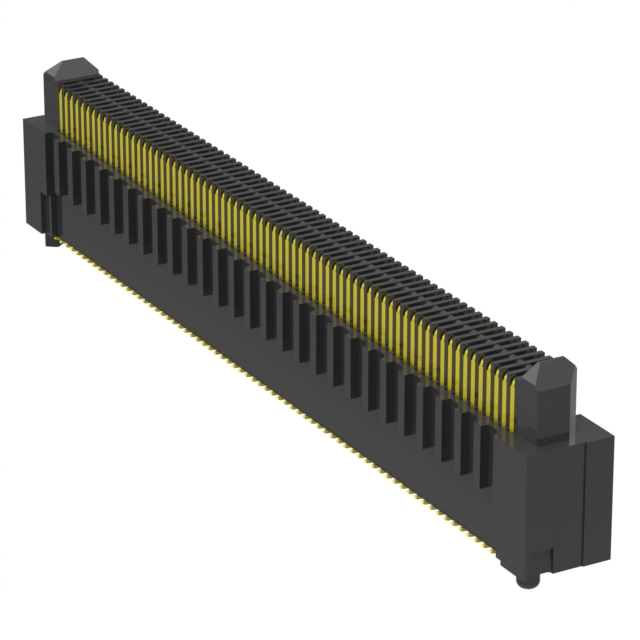

ERM8-070-09.0-L-DV-K-TR

Active

Samtec Inc.

CONN HDR 140POS SMD GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsERM8 Datasheet Datasheet +1

ERM8-070-09.0-L-DV-K-TR

Active

Samtec Inc.

CONN HDR 140POS SMD GOLD

Deep-Dive with AI

DocumentsERM8 Datasheet Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ERM8-070-09.0-L-DV-K-TR

Connector Type	Header, Center Strip Contacts
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Features	Pick and Place, Board Guide
Height Above Board	0.508 in
Height Above Board	12.91 mm
Mated Stacking Heights	14 mm, 19 mm, 16 mm
Mounting Type	Surface Mount
Number of Positions	140
Number of Rows	2
Pitch [x]	0.8 mm
Pitch [x]	0.031 in

ERM8-070 Series

Board to Board & Mezzanine Connectors 0.80 mm Edge Rate Rugged High Speed Terminal

...

Part	Contact Finish	Mounting Type	Mated Stacking Heights	Number of Rows	Features	Number of Positions	Connector Type	Contact Finish Thickness	Contact Finish Thickness	Height Above Board	Height Above Board	Pitch [x]	Pitch [x]
Samtec Inc. ERM8-070-05.0-S-DV-L-TR	Gold	Surface Mount	10 mm 12 mm 15 mm	2	Board Guide Latches	140	Header Center Strip Contacts	0.76 Ám	30 Áin	8.91 mm	0.351 in	0.8 mm	0.031 in
Samtec Inc. ERM8-070-05.0-S-DV-L-K-TR	Gold	Surface Mount	10 mm 12 mm 15 mm	2	Board Guide Latches Pick and Place	140	Header Center Strip Contacts	0.76 Ám	30 Áin	8.91 mm	0.351 in	0.8 mm	0.031 in
Samtec Inc. ERM8-040-02.0-L-DV-K-TR	Gold	Surface Mount	7 mm 9 mm 12 mm	2	Board Guide Pick and Place	80	Header Center Strip Contacts	0.25 Ám	10 Áin	5.97 mm	0.235 in	0.8 mm	0.031 in
Samtec Inc. ERM8-013-08.0-L-DV-TR	Gold	Surface Mount	10 mm 12 mm 15 mm	2	Board Guide	26	Header Center Strip Contacts	0.25 Ám	10 Áin	8.91 mm	0.351 in	0.8 mm	0.031 in
Samtec Inc. ERM8-070-01-L-D-RA-L-TR	Gold	Surface Mount Right Angle		2	Board Guide Latches Mounting Flange	140	Header Center Strip Contacts	0.25 Ám	10 Áin	6.25 mm	0.246 in	0.8 mm	0.031 in
Samtec Inc. ERM8-070-01-S-D-RA-L-TR	Gold	Surface Mount Right Angle		2	Board Guide Latches Mounting Flange	140	Header Center Strip Contacts	0.76 Ám	30 Áin	6.25 mm	0.246 in	0.8 mm	0.031 in
Samtec Inc. ERM8-013-08.0-L-DV-K-TR	Gold	Surface Mount	10 mm 12 mm 15 mm	2	Board Guide Pick and Place	26	Header Center Strip Contacts	0.25 Ám	10 Áin	8.91 mm	0.351 in	0.8 mm	0.031 in
Samtec Inc. ERM8-013-01-S-D-RA-TR	Gold	Surface Mount Right Angle		2	Board Guide Mounting Flange	26	Header Center Strip Contacts	0.76 Ám	30 Áin	6.25 mm	0.246 in	0.8 mm	0.031 in
Samtec Inc. ERM8-049-01-S-D-RA-DS-L-K-TR	Gold	Surface Mount Right Angle		2	Board Guide Latches Mounting Flange Pick and Place	98	Differential Pair Array Male	0.76 Ám	30 Áin	6.25 mm	0.246 in	0.8 mm	0.031 in
Samtec Inc. ERM8-070-09.0-L-DV-K-TR	Gold	Surface Mount	14 mm 16 mm 19 mm	2	Board Guide Pick and Place	140	Header Center Strip Contacts	0.25 Ám	10 Áin	12.91 mm	0.508 in	0.8 mm	0.031 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 8.49
		10	$ 7.67
		25	$ 7.25
		50	$ 7.02
	Tape & Reel (TR)	125	$ 6.18
		625	$ 5.85

Description

General part information

ERM8-070 Series

Board to Board & Mezzanine Connectors 0.80 mm Edge Rate Rugged High Speed Terminal

ERM8-070-09.0-L-DV-K-TR
