EVAL-KXR94-2353

Obsolete

Kionix Inc.

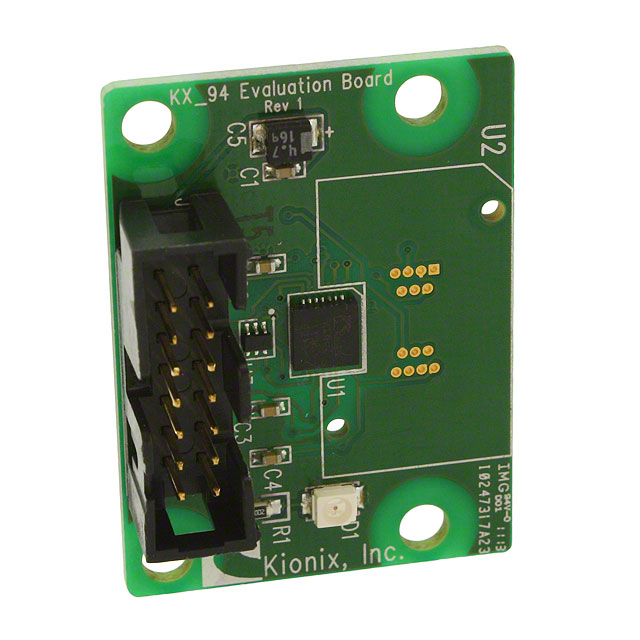

EVAL BOARD FOR KXR94-2353

Search across all available documentation for this part.

Obsolete

Kionix Inc.

EVAL BOARD FOR KXR94-2353

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EVAL-KXR94-2353	KXR94 Series

Acceleration Range	-	2 g
Acceleration Range	-	-2 g
Axis	-	Z
Axis	-	Y
Axis	-	X
Bandwidth	-	800 Hz
Interface	Serial, SPI	Analog, Serial, SPI
Mounting Type	-	Surface Mount
Package / Case	-	14-LFDFN Exposed Pad, 14-VFDFN Exposed Pad
Sensing Range [Max]	2 g	2 g
Sensing Range [Min]	-2 g	-2 g
Sensitivity	819 counts/g	660 - 1000 LSB/g
Sensor Type	Accelerometer, 3 Axis	Accelerometer, 3 Axis
Supplied Contents	Board(s)	Board(s)
Supplier Device Package	-	14-DFN (5x5)
Utilized IC / Part	KXR94-2353	KXR94-2283, KXR94-2050, KXR94-2353
Voltage - Supply	3.3 V	3.3 V
Voltage - Supply	-	5.25 V
Voltage - Supply	-	2.5 V

IC ACCELEROMETER TRI-AXIS 14DFN

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

KXR94-2353 - Accelerometer, 3 Axis Sensor Evaluation Board
