800-18-3-0-SPT2-BL-00200

Obsolete

CnC Tech, LLC

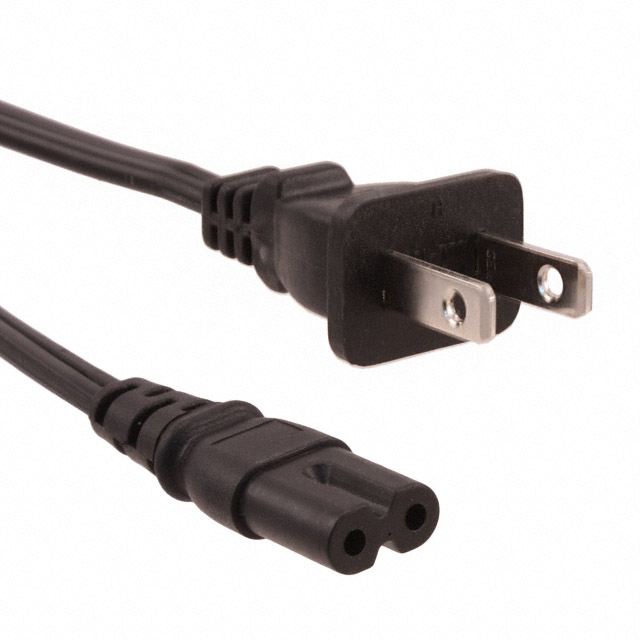

CORD 18AWG NEMA 1-15P - C7 6.56'

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

800-18-3-0-SPT2-BL-00200

Obsolete

CnC Tech, LLC

CORD 18AWG NEMA 1-15P - C7 6.56'

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

800-18 Series

6.56' (2.00m) Power Cord Black NEMA 1-15P To IEC 320-C7 SPT-2

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	800-18-3-0-SPT2-BL-00200	800-18 Series

1st Connector	NEMA 1-15P	NEMA 1-15P, NEMA 5-15P, IEC 320-C14
2nd Connector	IEC 320-C7	IEC 320-C7, IEC 320-C5, IEC 320-C13, Right Angle
Approval Agency Marking	CSA, UL	CSA, UL, CSA, cUL, UL, cUL
Approved Countries	United States, Canada	United States, Canada
Color	Black	Black, Red, White, Gray
Cord Type	SPT-2	SPT-2, SJT, SVT
Current Rating (Amps)	7 A	2.5 - 10 A
Features	-	Hospital Grade
Length	-	1.52 - 91.44 m
Length	-	5 - 12 ft
Length [x]	2 m	2 - 4.57 m
Length [x]	6.56 ft	3 - 15 ft
Number of Conductors	2	2 - 3
Operating Temperature	60 °C	60 - 105 C
Shielding	Unshielded	Unshielded
Style	Male Pins, Female Sockets	Male Pins, Female Sockets
Voltage Rating	125 VDC	125 - 250 VDC
Wire Gauge	18 AWG	18 AWG

800-18 Series

CORD 18AWG NEMA 1-15P - C7 6.56'

Part	Number of Conductors	Voltage Rating	Color	Shielding	Current Rating (Amps)	Wire Gauge	Operating Temperature	1st Connector	Cord Type	Approved Countries	Approval Agency Marking	Length [x]	Length [x]	2nd Connector	Style	Length	Length	Features
CnC Tech, LLC 800-18-3-2-SPT2-BL-00200	2	125 VDC	Black	Unshielded	7 A	18 AWG	105 C	NEMA 1-15P	SPT-2	Canada, United States	CSA, UL	2 m	6.56 ft	IEC 320-C7	Female Sockets, Male Pins
CnC Tech, LLC 800-18-13D-RE-0015F	3	125 VAC	Red	Unshielded	10 A	18 AWG	105 C	NEMA 5-15P	SJT	Canada, United States	CSA, cUL, UL	4.57 m	15 ft		Female Sockets, Male Pins
CnC Tech, LLC 800-18-39B-BL-0012F	3	125 VAC	Black	Unshielded	10 A	18 AWG	105 C	NEMA 5-15P	SVT	Canada, United States	CSA, cUL, UL			IEC 320-C5	Female Sockets, Male Pins	3.66 m	12 ft
CnC Tech, LLC 800-18-13D-WH-0015F-1	3	125 VDC	White	Unshielded	10 A	18 AWG	105 C	NEMA 5-15P	SJT	Canada, United States	cUL, UL	4.57 m	15 ft		Female Sockets, Male Pins
CnC Tech, LLC 800-18-0OD-GR-0006F	3	125 VAC	Gray	Unshielded	10 A	18 AWG	105 C	NEMA 5-15P	SJT	Canada, United States	CSA, cUL, UL				Female Sockets, Male Pins	1.83 m	6 ft	Hospital Grade
CnC Tech, LLC 800-18-1-2-SVT0-BL-00200-1	3	125 VAC	Black	Unshielded	10 A	18 AWG	105 C	NEMA 5-15P	SVT	Canada, United States	cUL, UL	2 m	6.56 ft	IEC 320-C13, Right Angle	Female Sockets, Male Pins
CnC Tech, LLC 800-18-13D-RE-0006F	3	125 VAC	Red	Unshielded	10 A	18 AWG	105 C	NEMA 5-15P	SJT	Canada, United States	CSA, cUL, UL				Female Sockets, Male Pins	1.83 m	6 ft
CnC Tech, LLC 800-18-39B-BL-0006F	3	125 VAC	Black	Unshielded	10 A	18 AWG	105 C	NEMA 5-15P	SVT	Canada, United States	CSA, cUL, UL			IEC 320-C5	Female Sockets, Male Pins	1.83 m	6 ft
CnC Tech, LLC 800-18-0OD-BL-0006F	3	125 VAC	Black	Unshielded	10 A	18 AWG	105 C	NEMA 5-15P	SJT	Canada, United States	CSA, cUL, UL				Female Sockets, Male Pins	1.83 m	6 ft	Hospital Grade
CnC Tech, LLC 800-18-1-2-SVT0-BL-00200	3	125 VAC	Black	Unshielded	10 A	18 AWG	105 C	NEMA 5-15P	SVT	Canada, United States	CSA, UL	2 m	6.56 ft	IEC 320-C13, Right Angle	Female Sockets, Male Pins
