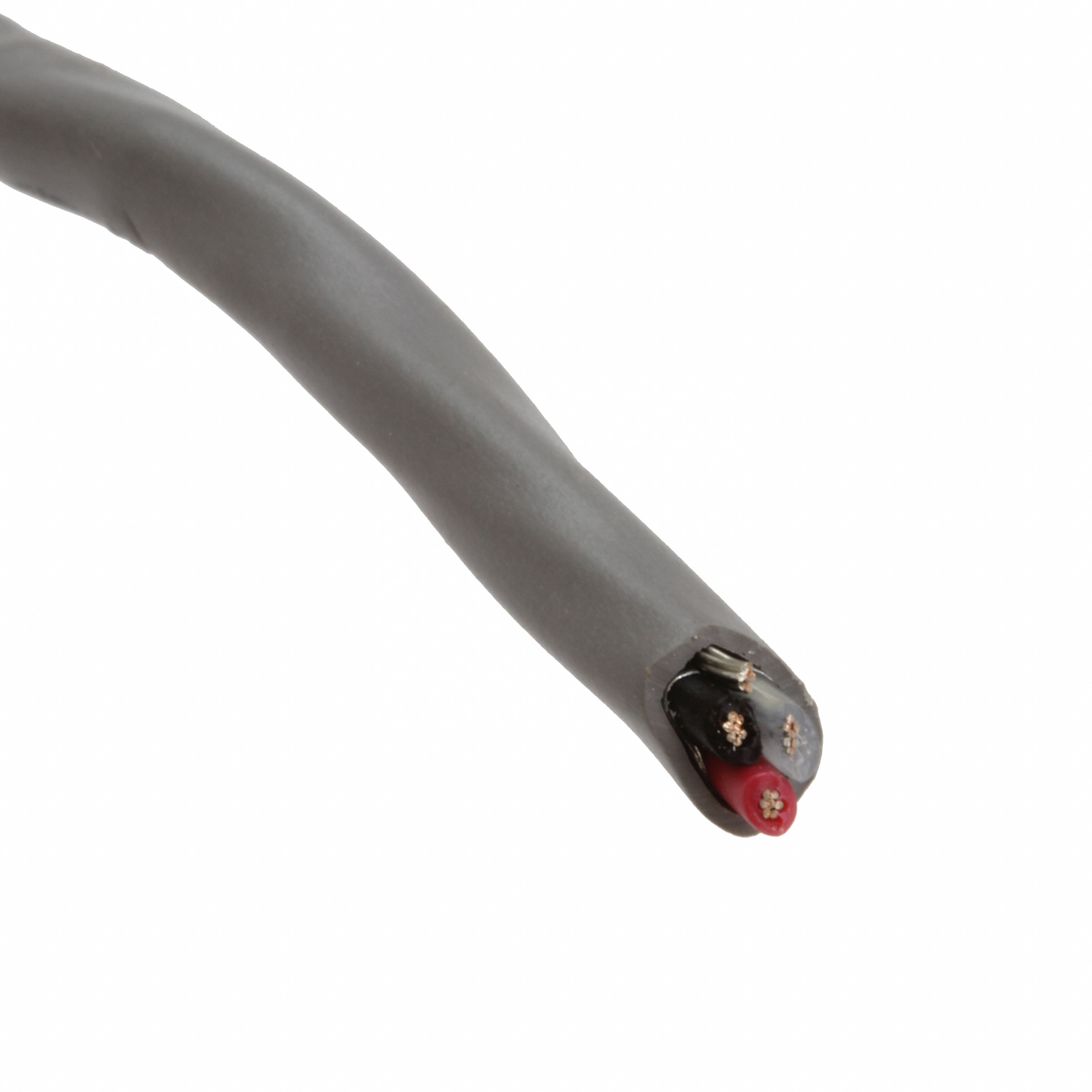

2403C SL021

Active

ALPHA WIRE

CABLE 3COND 22AWG SHLD 1000'

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 3COND 22AWG SHLD 1000'

Technical Specifications

Parameters and characteristics for this part

Specification	2403C SL021

Cable Type	Multi-Conductor
Conductor Insulation	Polyethylene (PE)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	30 AWG
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	0.178 in
Jacket (Insulation) Diameter [diameter]	4.52 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.02 in
Jacket (Insulation) Thickness	0.508 mm
Jacket Color	Slate
Length	1000 ft
Length	304.8 m
Number of Conductors	3
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Usage	Control, Communication
Voltage	300 V
Wire Gauge	22 AWG

CABLE 3COND 22AWG SHLD 1000'

Part	Length	Length	Cable Type	Shield Coverage	Conductor Insulation	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Features	Shield Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Strand [custom]	Conductor Strand [custom]	Voltage	Conductor Material	Shield Type	Jacket Color	Wire Gauge	Number of Conductors	Jacket (Insulation) Material	Usage
ALPHA WIRE 2403C SL021	1000 ft	304.8 m	Multi-Conductor	100 %	Polyethylene (PE)	0.02 in	0.508 mm	Drain Wire	Aluminum	0.178 in	4.52 mm	7	30 AWG	300 V	Copper, Tinned	Foil	Slate	22 AWG	3	Poly-Vinyl Chloride (PVC)	Communication, Control

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Conductor Multi-Conductor Cable Slate 22 AWG Foil 1000.0' (304.8m)
