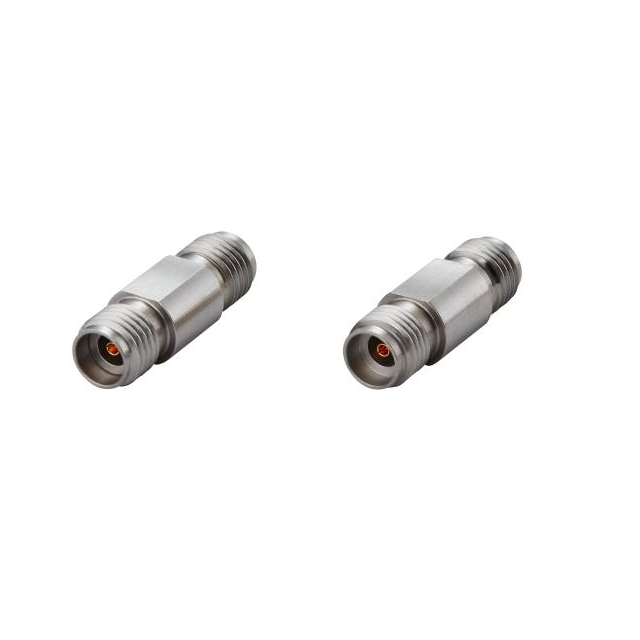

292FST.SMAF.N.XS

Active

TAOGLAS

COAX ADAPT SMA TO 2.92MM

Search across all available documentation for this part.

Active

TAOGLAS

COAX ADAPT SMA TO 2.92MM

Technical Specifications

Parameters and characteristics for this part

COAX ADAPT SMA TO 2.92MM

Part	Adapter Type	Body Material	Adapter Series	Adapter Series	Impedance	Dielectric Material	Convert To (Adapter End)	Convert To (Adapter End)	Conversion Type	Operating Temperature [Max]	Operating Temperature [Min]	Center Contact Material	Center Contact Plating	Mating Cycles	Center Gender	Insertion Loss	Style	Frequency - Max [Max]	Body Finish	Mounting Type	Convert From (Adapter End)
TAOGLAS 292FST.SMAF.N.XS	Jack to Jack	Stainless Steel	SMA	2.92 mm	50 Ohms	Polyetherimide (PEI)	2.92 mm	OS-2.9 Jack, Female Socket	Between Series	50 °C	-55 °C	Beryllium Copper	Gold	500	Female to Female	0.32 dB	Straight	27 GHz	Gold	Free Hanging (In-Line)	Female Socket, SMA Jack

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 159.37

General part information

Adapter Coaxial Connector SMA Jack, Female Socket To 2.92mm (OS-2.9) Jack, Female Socket 50 Ohms
