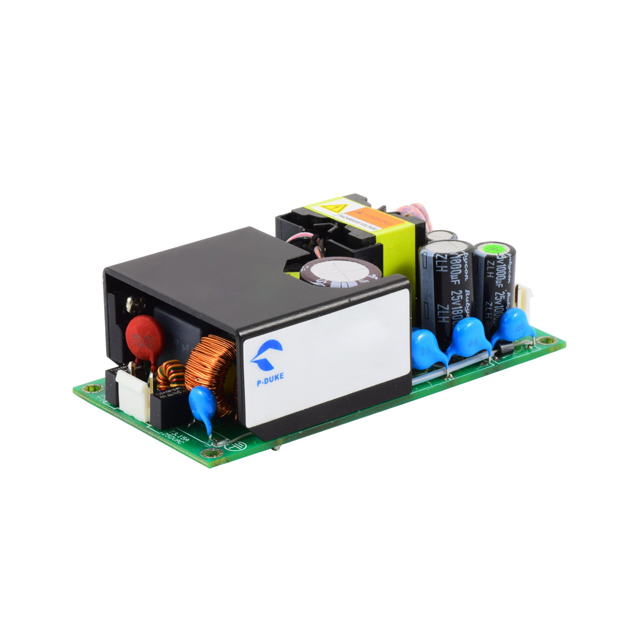

MAF150US12B

Active

P-DUKE Technology

AC/DC CONVERTER 12V 100W

Search across all available documentation for this part.

Active

P-DUKE Technology

AC/DC CONVERTER 12V 100W

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	MAF150US12B	MAF150 Series

Applications	ITE (Commercial), Medical	ITE (Commercial), Medical
Approval Agency	CE, cURus, CB, FCC	CE, cURus, CB, FCC
Current - Output 1	8.34 A	4.59 - 8.34 A
Efficiency	91 %	91 - 92 %
Features	Adjustable Output, Universal Input	Adjustable Output, Universal Input
Minimum Load Required	False	False
Mounting Type	Chassis Mount	Chassis Mount
Number of Outputs	1	1
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-25 °C	-25 °C
Power (Watts)	150 W	150 W
Power (Watts)	100 W	100 - 150 W
Size / Dimension [x]	4 in	4 in
Size / Dimension [x]	101.6 mm	101.6 mm
Size / Dimension [y]	50.8 mm	50.8 mm
Size / Dimension [y]	2 in	2 in
Size / Dimension [z]	29.5 mm	29.5 mm
Size / Dimension [z]	1.16 "	1.16 "
Standard Number	60950-1, 60601-1	60950-1, 60601-1
Type	Open Frame	Open Frame
Voltage - Input [Max]	370 VDC, 264 VAC	264 - 370 VDC
Voltage - Input [Min]	85 VAC, 120 VDC	85 - 120 VAC
Voltage - Isolation	4000 V	4000 V
Voltage - Output 1	12 V	12 - 24 V

AC/DC CONVERTER 24V 110W

Part	Voltage - Input [Min]	Voltage - Input [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Minimum Load Required	Approval Agency	Current - Output 1	Efficiency	Features	Number of Outputs	Mounting Type	Power (Watts)	Applications	Voltage - Isolation	Operating Temperature [Max]	Operating Temperature [Min]	Standard Number	Voltage - Output 1	Type	Power (Watts)
P-DUKE Technology MAF150US24B	85 VAC, 120 VDC	264 VAC, 370 VDC	4 in	50.8 mm	101.6 mm	29.5 mm	1.16 "	2 in		CB, CE, cURus, FCC	4.59 A	92 %	Adjustable Output, Universal Input	1	Chassis Mount	110 W, 150 W	ITE (Commercial), Medical	4000 V	85 °C	-25 °C	60601-1, 60950-1	24 V	Open Frame
P-DUKE Technology MAF150US12B	85 VAC, 120 VDC	264 VAC, 370 VDC	4 in	50.8 mm	101.6 mm	29.5 mm	1.16 "	2 in		CB, CE, cURus, FCC	8.34 A	91 %	Adjustable Output, Universal Input	1	Chassis Mount	100 W	ITE (Commercial), Medical	4000 V	85 °C	-25 °C	60601-1, 60950-1	12 V	Open Frame	150 W
