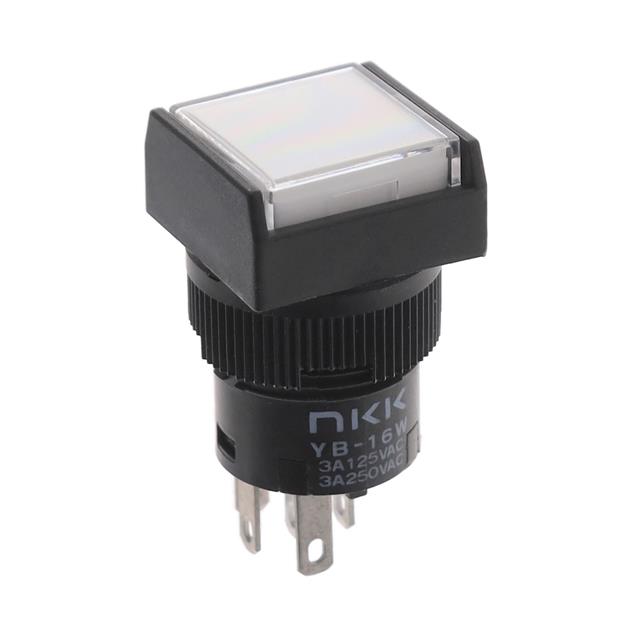

YB16WSKW01-5C-JB

Active

NKK SWITCHES

SWITCH PUSHBUTTON SPDT 3A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

YB16WSKW01-5C-JB

Active

NKK SWITCHES

SWITCH PUSHBUTTON SPDT 3A 125V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	YB16WSKW01-5C-JB	YB16WS Series

Actuator Marking	No Marking	No Marking
Actuator Type	Button, Square	Button, Square, Plunger for Cap
Circuit	SPDT	SPDT
Color - Actuator/Cap	Clear	Clear, White, Blue, Red, Clear (Red Filter/Diffuser), Yellow (White Filter/Diffuser)
Current Rating (Amps)	3 A	0.4 - 3 VA
Electrical Life	100000 Cycles	100000 Cycles
Features	Tactile Feedback	Tactile Feedback
Illumination Type, Color	Red, LED	Green/Red, LED, White, Green, Amber, Blue, Red
Illumination Voltage (Nominal)	1.9 VDC	1.9 - 24 V
Ingress Protection	IP65 - Dust Tight, Water Resistant	IP65 - Dust Tight, Water Resistant
Mechanical Life	200000 Cycles	200000 Cycles
Mounting Type	Panel Mount, Front	Panel Mount, Front
Operating Temperature [Max]	50 °C	50 - 70 °C
Operating Temperature [Min]	-25 °C	-25 °C
Panel Cutout Dimensions [diameter]	16 mm	16 mm
Switch Function	On-On	On-On
Termination Style	0.11 in	0.11 in
Termination Style	Quick Connect, Solder	Quick Connect, Solder, PC Pin
Termination Style	2.8 mm	2.8 mm
Type	Illuminated, Standard	Illuminated, Standard
Voltage Rating - AC	125 V	28 - 125 V
Voltage Rating - DC	30 V	28 - 30 V

YB16WS Series

SWITCH PUSH SPDT 0.4VA 28V

Part	Current Rating (Amps)	Voltage Rating - DC	Features	Termination Style	Termination Style	Termination Style	Illumination Type, Color	Color - Actuator/Cap	Operating Temperature [Max]	Operating Temperature [Min]	Panel Cutout Dimensions [diameter]	Circuit	Type	Ingress Protection	Actuator Marking	Switch Function	Mechanical Life	Actuator Type	Electrical Life	Voltage Rating - AC	Mounting Type	Illumination Voltage (Nominal)
NKK SWITCHES YB16WSKG01-2CF24-JB	0.4 VA	28 V	Tactile Feedback	0.11 in	Quick Connect, Solder	2.8 mm	Green/Red, LED	Clear	50 °C	-25 °C	16 mm	SPDT	Illuminated, Standard	IP65 - Dust Tight, Water Resistant	No Marking	On-On	200000 Cycles	Button, Square	100000 Cycles	28 V	Panel Mount, Front	24 V
NKK SWITCHES YB16WSKW01-BB	3 A	30 V	Tactile Feedback	0.11 in	Quick Connect, Solder	2.8 mm		White	70 °C	-25 °C	16 mm	SPDT	Standard	IP65 - Dust Tight, Water Resistant	No Marking	On-On	200000 Cycles	Button, Square	100000 Cycles	125 V	Panel Mount, Front
NKK SWITCHES YB16WSKW01-6B-JB	3 A	30 V	Tactile Feedback	0.11 in	Quick Connect, Solder	2.8 mm	LED, White	Clear	50 °C	-25 °C	16 mm	SPDT	Illuminated, Standard	IP65 - Dust Tight, Water Resistant	No Marking	On-On	200000 Cycles	Button, Square	100000 Cycles	125 V	Panel Mount, Front	3.3 VDC
NKK SWITCHES YB16WSKW01-GB	3 A	30 V	Tactile Feedback	0.11 in	Quick Connect, Solder	2.8 mm		Blue	70 °C	-25 °C	16 mm	SPDT	Standard	IP65 - Dust Tight, Water Resistant	No Marking	On-On	200000 Cycles	Button, Square	100000 Cycles	125 V	Panel Mount, Front
NKK SWITCHES YB16WSKW01-5F-JB	3 A	30 V	Tactile Feedback	0.11 in	Quick Connect, Solder	2.8 mm	Green, LED	Clear	50 °C	-25 °C	16 mm	SPDT	Illuminated, Standard	IP65 - Dust Tight, Water Resistant	No Marking	On-On	200000 Cycles	Button, Square	100000 Cycles	125 V	Panel Mount, Front	2.2 VDC
NKK SWITCHES YB16WSKW03	3 A	30 V	Tactile Feedback		PC Pin				70 °C	-25 °C	16 mm	SPDT	Standard	IP65 - Dust Tight, Water Resistant	No Marking	On-On	200000 Cycles	Plunger for Cap	100000 Cycles	125 V	Panel Mount, Front
NKK SWITCHES YB16WSKW01-6F-JB	3 A	30 V	Tactile Feedback	0.11 in	Quick Connect, Solder	2.8 mm	Green, LED	Clear	50 °C	-25 °C	16 mm	SPDT	Illuminated, Standard	IP65 - Dust Tight, Water Resistant	No Marking	On-On	200000 Cycles	Button, Square	100000 Cycles	125 V	Panel Mount, Front	3.3 VDC
NKK SWITCHES YB16WSKW01-2CF02-JB	3 A	30 V	Tactile Feedback	0.11 in	Quick Connect, Solder	2.8 mm	Green/Red, LED	Clear	50 °C	-25 °C	16 mm	SPDT	Illuminated, Standard	IP65 - Dust Tight, Water Resistant	No Marking	On-On	200000 Cycles	Button, Square	100000 Cycles	125 V	Panel Mount, Front	2 VDC
NKK SWITCHES YB16WSKW01-2CF24-JB	3 A	30 V	Tactile Feedback	0.11 in	Quick Connect, Solder	2.8 mm	Green/Red, LED	Clear	50 °C	-25 °C	16 mm	SPDT	Illuminated, Standard	IP65 - Dust Tight, Water Resistant	No Marking	On-On	200000 Cycles	Button, Square	100000 Cycles	125 V	Panel Mount, Front	24 V
NKK SWITCHES YB16WSKG01-5F24-JF	0.4 VA	28 V	Tactile Feedback	0.11 in	Quick Connect, Solder	2.8 mm	Green, LED	Clear	50 °C	-25 °C	16 mm	SPDT	Illuminated, Standard	IP65 - Dust Tight, Water Resistant	No Marking	On-On	200000 Cycles	Button, Square	100000 Cycles	28 V	Panel Mount, Front	24 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 23.02
		10	$ 20.91
		100	$ 18.21
Newark	Each	1	$ 40.34
		5	$ 35.97
		10	$ 34.75
		25	$ 32.83
		50	$ 30.56
		100	$ 27.07
		250	$ 24.27

Description

General part information

YB16WS Series

Pushbutton Switch SPDT Standard, Illuminated Panel Mount, Front
