1379165-7

Active

TE Connectivity AMP Connectors

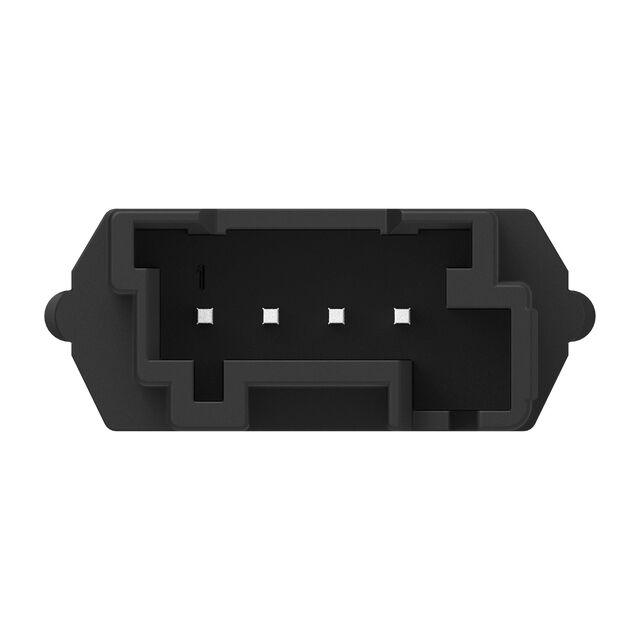

4POS MQS .63 HEADER 180DEG THR

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

4POS MQS .63 HEADER 180DEG THR

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole 4 position 0.100" (2.54mm)

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	1379165-7	1379165 Series

	-	-
Connector Type	Header	Header
Contact Length - Mating	5.9 mm	5.9 mm
Contact Length - Mating	0.232 in	0.232 in
Contact Length - Post [x]	0.15 in	0.15 in
Contact Length - Post [x]	3.81 mm	3.81 mm
Contact Material	Copper Alloy	Copper Alloy
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Fastening Type	Push-Pull	Push-Pull
Insulation Color	Black	Black
Insulation Material	Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled	Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled
Material Flammability Rating	UL94 HB	UL94 HB
Mounting Type	Through Hole	Through Hole
Number of Positions	4	4
Number of Positions Loaded	All	All
Number of Rows	1	1
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Pitch - Mating	0.1 in	0.1 in
Pitch - Mating	2.54 mm	2.54 mm
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Cable/Wire	Board to Cable/Wire
Termination	Solder	Solder
Voltage Rating	12 V	12 V

4W MQS HDR POSITIVE MATE

Part	Contact Type	Fastening Type	Number of Positions	Termination	Insulation Color	Contact Material	Contact Length - Mating	Contact Length - Mating	Voltage Rating	Number of Rows	Shrouding	Contact Shape	Mounting Type	Insulation Material	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Style	Contact Length - Post [x]	Contact Length - Post [x]	Pitch - Mating	Pitch - Mating	Material Flammability Rating	Number of Positions Loaded
TE Connectivity AMP Connectors 1379165-1
TE Connectivity AMP Connectors 1379165-3
TE Connectivity AMP Connectors 1-1379165-6
TE Connectivity AMP Connectors 1379165-7	Male Pin	Push-Pull	4	Solder	Black	Copper Alloy	5.9 mm	0.232 in	12 V	1	Shrouded - 4 Wall	Square	Through Hole	Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled	85 °C	-40 °C	Header	Board to Cable/Wire	0.15 in	3.81 mm	0.1 in	2.54 mm	UL94 HB	All
TE Connectivity AMP Connectors 1-1379165-5
