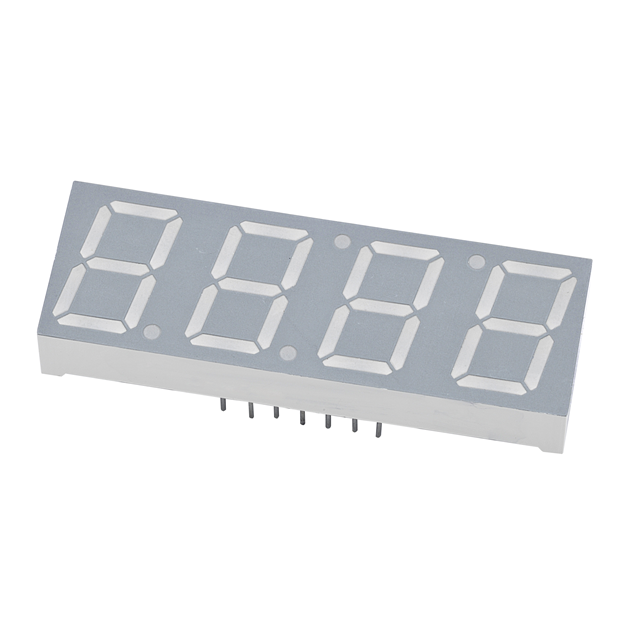

CDQA28GT2WB

Active

ChromeLED

DISPLAY 7SEG 0.28" QUAD GREEN 12

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CDQA28GT2WB

Active

ChromeLED

DISPLAY 7SEG 0.28" QUAD GREEN 12

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CDQA28GT2WB

Color	Green
Common Pin	Common Anode
Current - Test	20 mA
Digit/Alpha Size	7 mm
Digit/Alpha Size	0.28 in
Display Type	7-Segment
Millicandela Rating	100 mcd
Number of Characters	4
Package / Case	12-DIP
Power Dissipation (Max) [Max]	120 mW
Size / Dimension [x]	0.228 in
Size / Dimension [x]	5.8 mm
Size / Dimension [y]	32.2 mm
Size / Dimension [y]	1.268 in
Size / Dimension [z]	10 mm
Size / Dimension [z]	0.394 in
Voltage - Forward (Vf) (Typ)	3.2 V
Wavelength - Peak	525 nm

CDQA28 Series

DISPLAY 7SEG 0.28" QUAD GREEN 12

Part	Digit/Alpha Size	Digit/Alpha Size	Current - Test	Color	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Voltage - Forward (Vf) (Typ)	Display Type	Power Dissipation (Max) [Max]	Common Pin	Number of Characters	Wavelength - Peak	Millicandela Rating	Package / Case
ChromeLED CDQA28GT2WB	7 mm	0.28 in	20 mA	Green	10 mm	0.394 in	32.2 mm	0.228 in	5.8 mm	1.268 in	3.2 V	7-Segment	120 mW	Common Anode	4	525 nm	100 mcd	12-DIP

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 2.95

Description

General part information

CDQA28 Series

Display Modules - LED Character and Numeric Green 7-Segment 4 Character Common Anode 3.2V 20mA 0.394" H x 1.268" W x 0.228" D (10.00mm x 32.20mm x 5.80mm) 12-DIP
