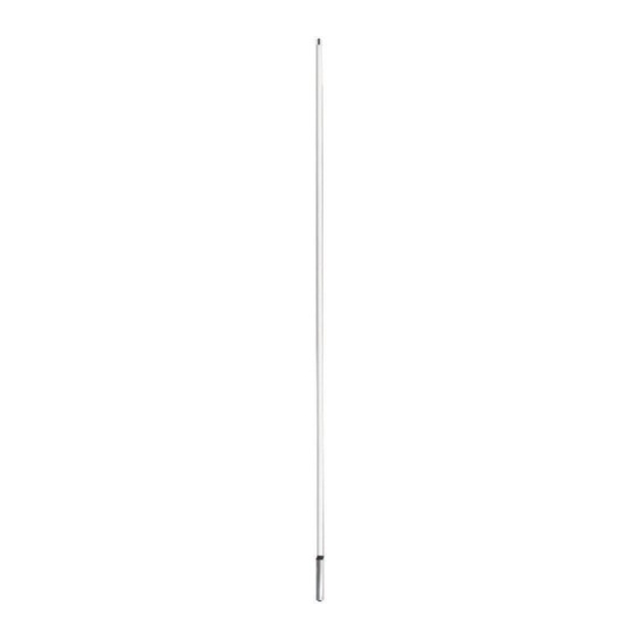

4220.09-405-T0

Active

Amphenol Procom

9DBD COLINEAR ODEG DOWNTILT 38

Search across all available documentation for this part.

Active

Amphenol Procom

9DBD COLINEAR ODEG DOWNTILT 38

Technical Specifications

Parameters and characteristics commom to parts in this series

9DBD COLINEAR ODEG DOWNTILT 38

Part	Frequency (Center/Band)	Termination	Gain	Frequency Group [Max]	Frequency Group [Min]	Power - Max [Max]	Frequency Range [Max]	Frequency Range [Min]	Number of Bands	Mounting Type	Antenna Type	Height (Max) [Max]	Height (Max) [Max]	Ingress Protection	VSWR
Amphenol Procom 4220.09-405-T0	405 MHz	7/16-DIN Female	10.9 dBi	1 GHz	300 MHz	300 W	430 MHz	380 MHz	1	Bracket Mount	Whip, Straight	536 cm	211.024 in	IP56	1.5
Amphenol Procom 4220.09-445-T0	455 MHz	7/16-DIN Female	10.9 dBi	1 GHz	300 MHz	300 W	470 MHz	420 MHz	1	Bracket Mount	Whip, Straight	536 cm	211.024 in	IP56	1.5

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 1636.20

General part information

RF ANTENNA Whip, Straight 7/16-DIN Female Bracket Mount

Technical documentation and resources

No documents available
